Lithium batteries are becoming increasingly popular due to their higher energy density, longer life span, and lighter weight compared to traditional lead-acid batteries. One common use case for lithium batteries is in off-grid solar systems, electric vehicles, and backup power applications. Understanding the time required to charge a lithium battery is critical for optimizing energy management and ensuring efficient operation. This article explores how long it would take to charge a 12V 100Ah lithium battery using a 7-amp battery charger, and the factors that may influence this charging time.
Understanding the Battery and Charger Parameters
Before delving into the calculation, it is important to understand the key parameters involved:
Battery Capacity (100Ah): The capacity of a battery is measured in amp-hours (Ah), which indicates the amount of current a battery can supply over a specific period. A 100Ah battery, for example, can theoretically provide 100 amps of current for one hour or 1 amp for 100 hours.
Charger Current (7A): The charger’s current rating refers to the amount of current it can supply to the battery per hour. In this case, a 7-amp charger can supply 7 amps per hour to the battery.

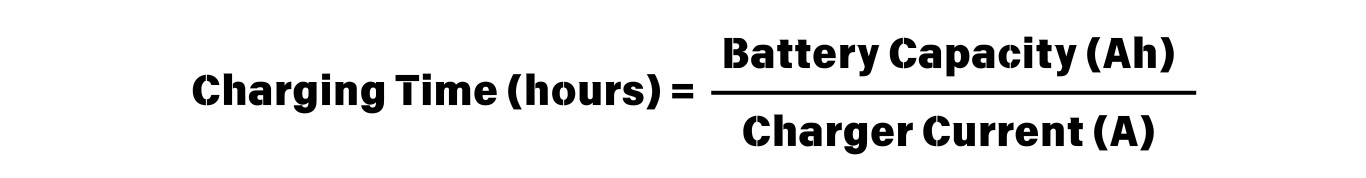

The basic formula for estimating charging time is as follows:
Real-World Factors Affecting Charging Time
Although the simple formula provides a basic estimate, several factors can affect the actual time required to charge the battery. These include:
State of Charge (SOC)
: The state of charge of the battery at the beginning of the charging cycle plays a significant role. If the battery is not fully discharged, it will take less time to charge. For example, if the battery is at 50% charge, only 50Ah of capacity needs to be replenished, reducing the charging time by half.
Charging Efficiency

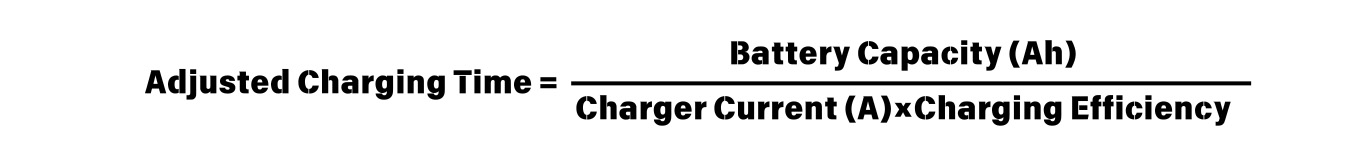

: In practice, not all the power delivered by the charger is used to charge the battery. Some energy is lost due to factors such as heat generation and internal resistance within the battery. The efficiency of charging typically ranges from 85% to 95%. Assuming an 85% efficiency, the effective current being used for charging is lower than the rated 7A, leading to a longer charging time.

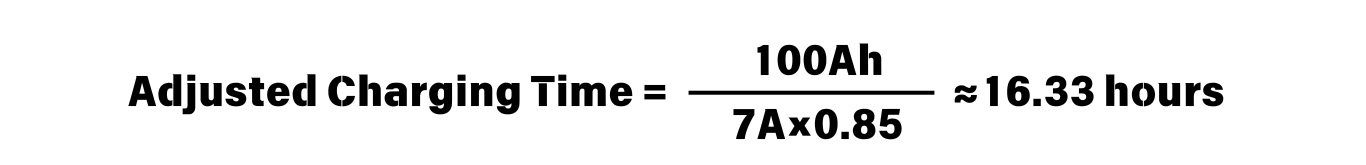

Therefore, the actual charging time may increase to about 16.33 hours, accounting for inefficiencies.
Battery Charging Profile
Lithium batteries typically have a charging profile that involves multiple stages: bulk charging, absorption charging, and float charging. In the bulk stage, the battery is charged at a constant current, which is the most rapid part of the charging process. During the absorption stage, the charging current decreases as the battery approaches its full capacity. This means that even with a 7A charger, the charging time will extend as the battery gets closer to 100%, because the current decreases toward the end of the cycle.
Charger Type and Voltage Regulation
The type of charger and its voltage regulation also influence the charging process. A charger that is designed specifically for lithium batteries typically uses a multi-stage charging process, which includes steps to prevent overcharging, maintain battery health, and ensure efficient charging. If a non-lithium specific charger is used, the charging process may be inefficient, or it may not be optimized for lithium chemistry, thus increasing charging time.
Temperature
The temperature of both the battery and the charger can affect the charging time and efficiency. Lithium batteries typically operate best at temperatures between 20°C and 25°C. Extreme cold or hot temperatures can reduce the efficiency of the charging process, leading to longer charging times. At lower temperatures, the internal resistance of the battery increases, and the charger may reduce the charging current to prevent overheating or damage.
Practical Considerations

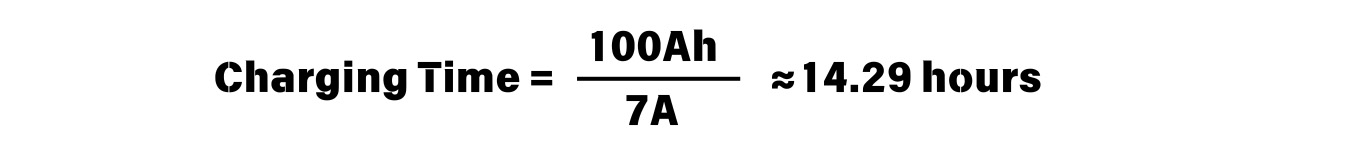

While the theoretical time for charging a 12V 100Ah lithium battery with a 7A charger is about 14.29 hours, real-world conditions and the factors mentioned above can increase this time. Typically, for most charging applications, it is reasonable to assume a charging time of 16-18 hours, depending on the SOC, efficiency, and environmental factors.
It is also worth noting that some charging systems come equipped with features that reduce charging time by increasing the charging current or utilizing more advanced charging algorithms. For example, high-speed chargers or DC fast chargers can significantly reduce charging times, though they are often not used with smaller lithium battery systems like the one discussed here.
Charging a 12V 100Ah lithium battery with a 7A charger under ideal conditions will take approximately 14.29 hours. However, when accounting for factors such as battery efficiency, charger performance, and environmental conditions, the actual charging time may range from 16 to 18 hours. Understanding these variables and optimizing the charging system for the specific application will help ensure that the battery is charged efficiently and safely. While the
7A charger is suitable for standard applications, those seeking faster charging may consider using higher-capacity chargers, provided the battery can handle the increased current.
