What's it MPPT?
MPPT (Maximum Power Point Tracking) is a power electronic technology mainly used in photovoltaic power generation systems, wind turbines, and On-Board Battery Charger. Its core function is to adjust the output power of the device according to changes in the external environment, such as temperature and light intensity. By ensuring the equipment is always operating at the maximum power point, it enhances energy conversion efficiency, making it a crucial component in systems where efficient energy utilization is essential.
Correlated ecology
SUN 5/6/8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
Deye SUN-8K-SG01LP1-EU, is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports single phase and three phase parallel application, and the Max. parallel units is up to 16pcs.

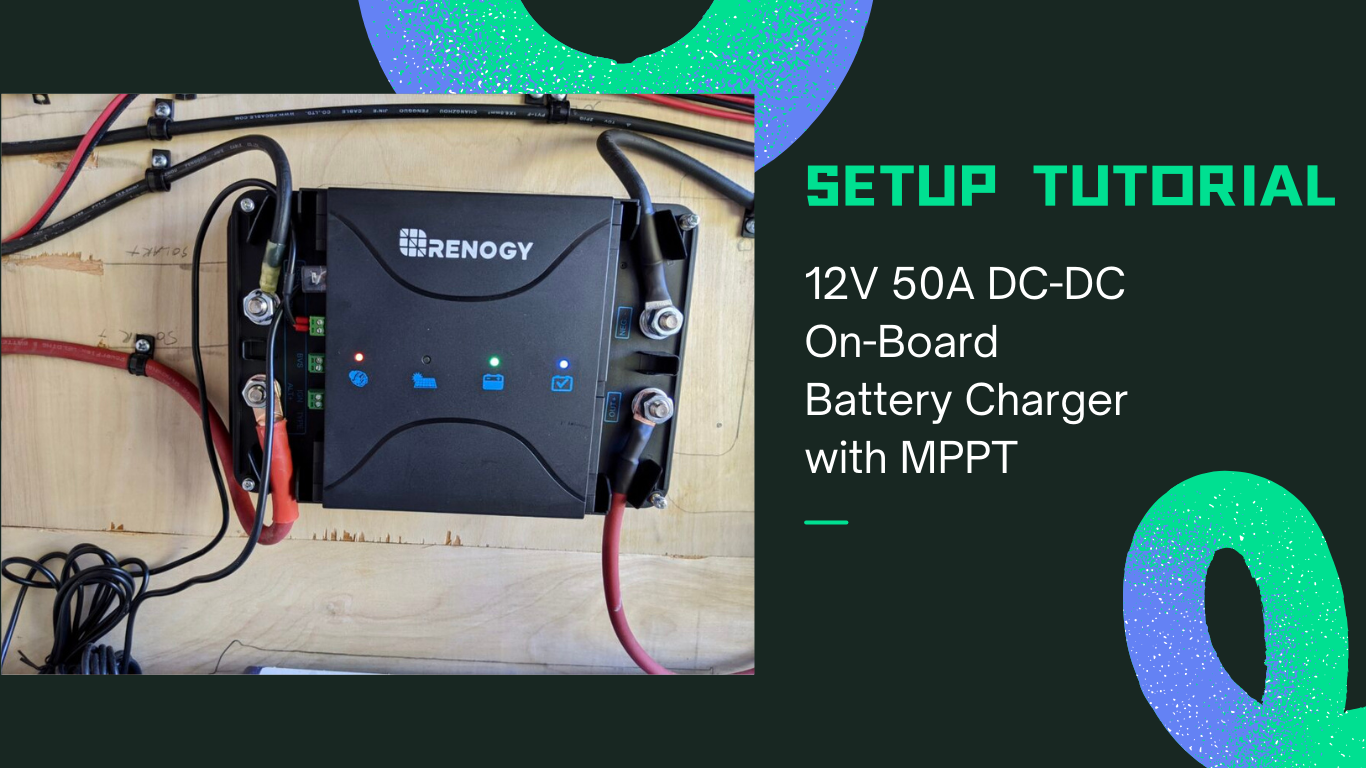

Procedure
Verify battery type, capacity, and generator compatibility.
Prepare necessary installation accessories, such as ring terminals, fuses (60A recommended), solar adapter cables, and ignition signal cables.

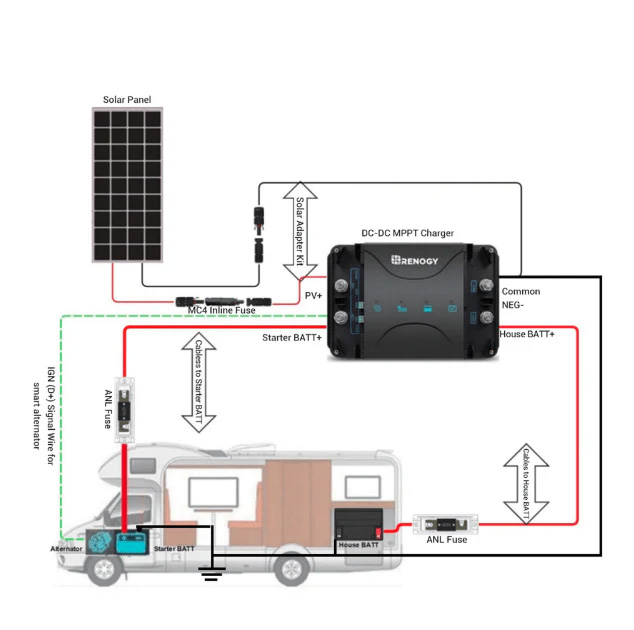

The starting battery is connected to the input terminal for the main power supply while the vehicle is running.
The solar panel is connected to the PV input port via MC4 with a maximum input power of 660W.
The service battery is connected to the output to complete the energy storage and ensure correct polarity.
Depending on the
battery type (such as lithium batteries), select the charging mode via a dip switch or an APP (such as DC Home).
Enable the remote monitoring function using an RS485 communication cable.
Check that all connections are secure and that there is no risk of short circuits.
Turn on the power and observe the LED indicator or monitor the working status of the application.
Notice
Safety: Always use a fuse or circuit breaker to prevent circuit overload.
Temperature management: The installation location should avoid hot areas and optimize charging with the built-in temperature sensor.
Regular maintenance: Check cable connections and device status to ensure long-term stability of the system.
FAQ
Which DC-DC chargers support MPPT technology?
Many advanced DC-DC chargers now integrate MPPT technology to maximize solar charging efficiency. Popular models include.
Renogy DCC50S: A 12V, 50A DC-DC charger with dual inputs (solar and alternator), MPPT for solar input, and multi-battery compatibility (AGM, GEL, and lithium).
Victron Energy Orion-Tr Smart DC-DC Charger: Features MPPT for solar inputs, with Bluetooth connectivity for monitoring and configuration.
Redarc BCDC Series: Combines DC-DC charging with MPPT, supporting a range of solar panel setups and battery chemistries.
Ctek D250SE: A dual-input 20A DC-DC charger with built-in MPPT for solar optimization, ideal for smaller systems.
These chargers are commonly used in RVs, marine applications, and off-grid setups where both alternator and solar power are utilized. MPPT technology ensures the solar panels operate at their maximum power point for the most efficient charging possible.
★Here you can find almost all the battery chargers you need.
What types of batteries are compatible with the DCC50S?
The DCC50S supports multiple battery types, including lead-acid batteries (AGM, GEL), lithium batteries (LiFePO4), and custom-configured batteries. Before installation, select the appropriate battery mode using the DIP switch or a compatible application.
What are the requirements for solar panels used with the DCC50S?
The maximum solar panel input power is 660W, with an optimal voltage range of 16V-60V. To maximize charging efficiency using the MPPT function, ensure that the solar panel matches the controller's input specifications
How can I ensure the system operates safely?
It is recommended to install fuses or circuit breakers (60A recommended) between input and output cables. Additionally, ensure all connections are secure, and mount the device in a well-ventilated area to avoid overheating
Why isn’t the LED indicator on the device lighting up?
This could be due to the following reasons:
The starter battery or solar input is not connected or powered.
Loose connections or incorrect polarity.
Blown fuses or overload protection activated. Check power connections, fuse status, and restart the device
How do I enable remote monitoring?
Use the included RS485 communication cable to connect the charger to a supported monitoring system or app (such as Renogy DC Home). The app allows users to monitor real-time data like charging status, battery voltage, and input power
