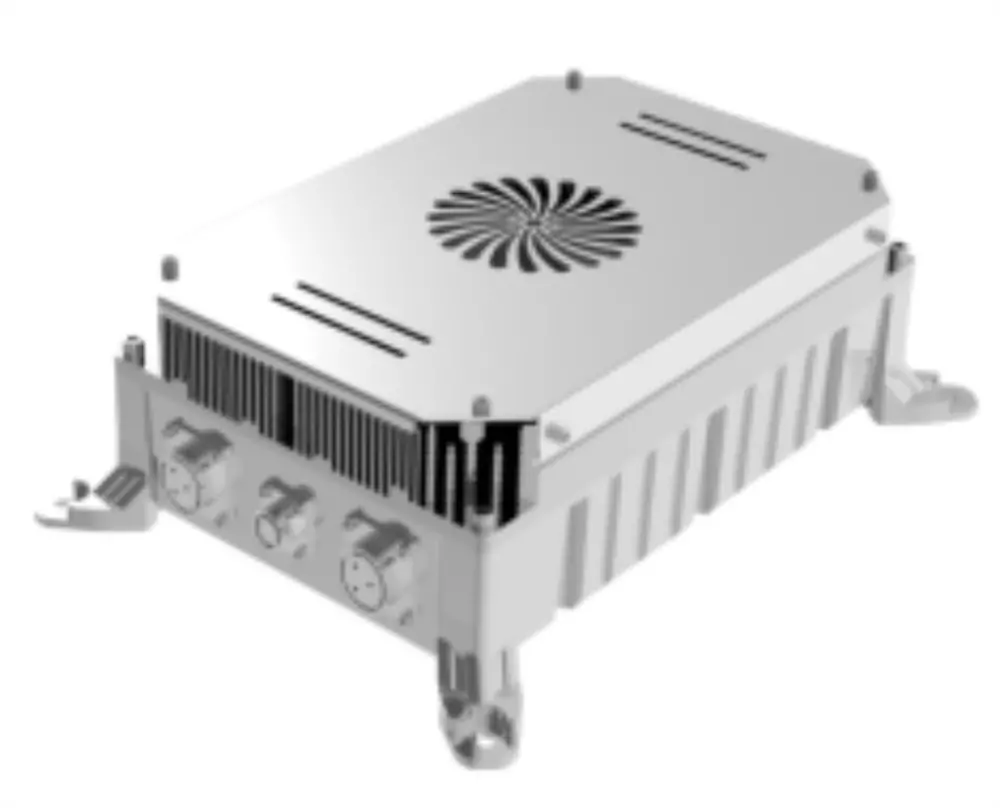

Our customer from Norway recently purchased 4pcs Air-cooled 6.6KW 540V On Board Battery Chargers from us.

The chargers are used for 192S LiFEPO4 battery pack for a current project/prototype.

Those chargers have CANbus and they  need to have different CAN ID, as 3 units will be run in parallel, sourced from each separate phase from a 400V 3 phase line to yield 20kW total.

the other one is as spare.

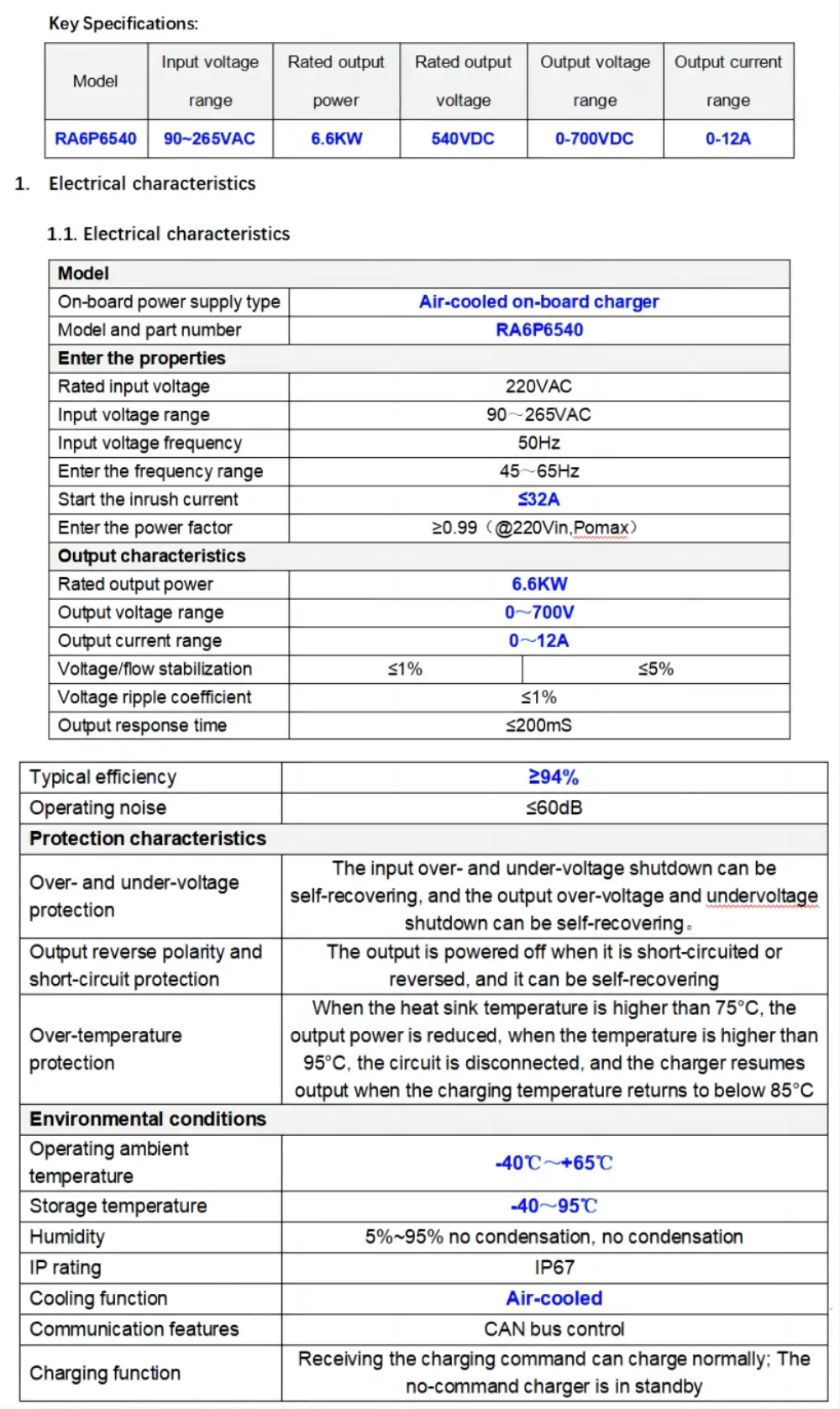

The parameter for this charger is as below:

Our customer are in a tight time regarding chargers，The reason why they rush this is that a large electrical driven construction vehicle is now out of order, waiting for the replacement of the onboard charger.

And the construction project needs it urgently into operation again.

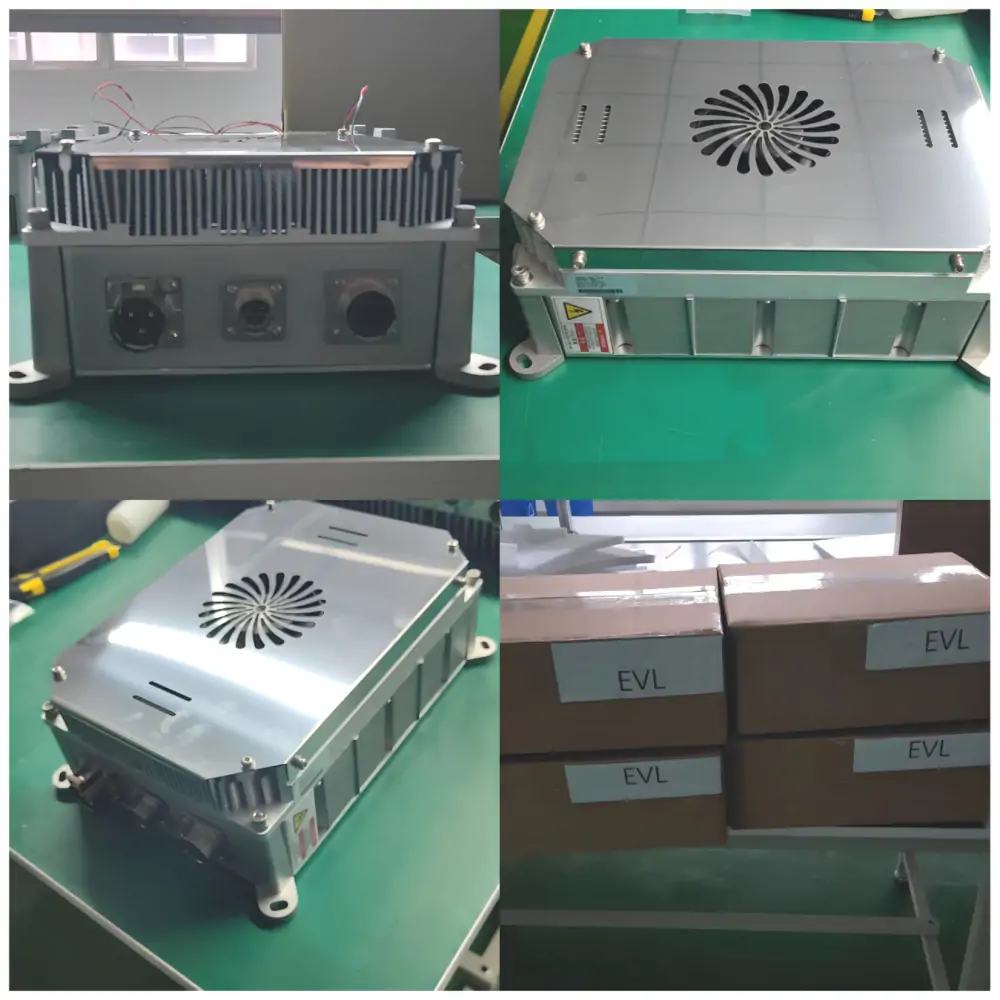

We prepared the chargers and shipped them out before CNY holiday.

Our RA6P6 series chargers have almost same dimension with TC chargers and the chargers can support same CAN protocol with TC chargers.

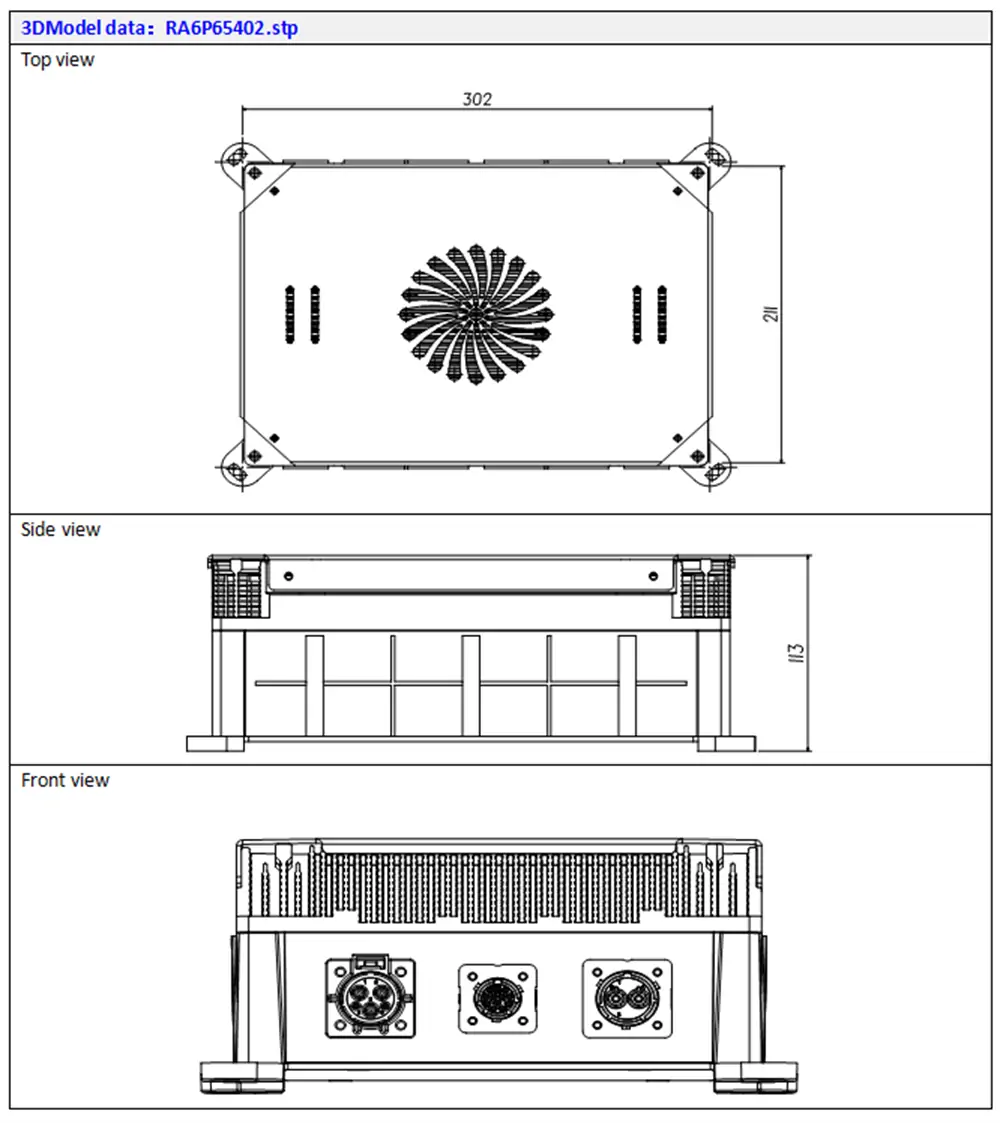

Below pictures is for dimension of RA6P6 series：

The leadtime of our RA6P6 series chargers is short than TC chargers.

We packed the chargers into cartons with total 40KGS gross weight：

The chargers were shipped via UPS and from below picture，it took 10days to arrived at destination:
