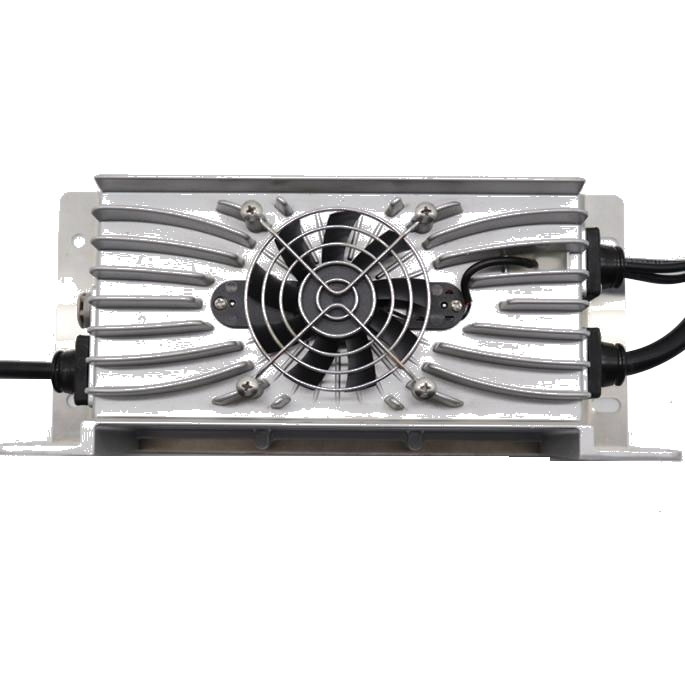

Lithium batteries are widely used in consumer electronics, electric vehicles, and energy storage systems due to their high energy density, long lifespan, and lightweight characteristics. The charger is a crucial component of the lithium battery system, and its design directly affects the battery's lifespan and safety. This article will explore the principles of lithium battery chargers and analyze the feasibility and implications of mixed charging.

Principles of Lithium Battery Chargers

The design of lithium battery chargers must meet the specific charging requirements of lithium batteries to ensure safety and efficiency. The basic principles of a lithium battery charger include the following stages:

1. Constant Current (CC) Charging Phase:

At the beginning of charging, the charger supplies a constant current to the battery. This phase aims to quickly charge the battery to a higher voltage level, typically between 4.0V and 4.2V, depending on the battery specifications. The constant current charging phase continues until the battery voltage approaches the set termination voltage.

2. Constant Voltage (CV) Charging Phase:

Once the battery voltage nears the charger’s set constant voltage, the charger switches to constant voltage mode. During this phase, the charger maintains a constant voltage while the current gradually decreases. This mode ensures the stability of the battery voltage and prevents overcharging.

3. Charging Termination Phase:

When the battery charging current drops to a predetermined termination current value, the charger stops charging or enters a maintenance mode. At this stage, the battery is nearly fully charged, and the charger may use small pulses (sometimes referred to as trickle charging) to maintain the battery's full charge without overcharging.

4. Safety Protection Mechanisms:

Lithium battery chargers are typically equipped with various safety protection mechanisms, including overcharge protection, over-discharge protection, short-circuit protection, and overheat protection. These measures effectively prevent battery damage or safety issues caused by abnormal charging conditions.

Can Lithium Battery Chargers Handle Mixed Charging?

"Mixed charging" generally refers to using a single charger to charge different models or types of batteries simultaneously. The following aspects are crucial when considering whether lithium battery chargers can handle mixed charging:

1. Compatibility of Different Battery Types:

Different types of lithium batteries (e.g., lithium-cobalt oxide, lithium iron phosphate) have distinct charging characteristics and voltage ranges. If a charger is not designed to support the charging standards of these different battery types, it may result in inefficient charging or battery damage.

2. Voltage Matching of the Charger:

Each lithium battery has a specific charging voltage range. For example, the charging voltage range for common lithium-ion batteries is 4.2V, whereas lithium iron phosphate batteries might have a range of 3.6V. If the charger’s voltage settings do not match, it could harm the battery or affect charging performance.

3. Capacity and Charging Current Matching:

The capacity of the battery and the charging current are critical parameters for charging design. If the charger’s output current does not match the battery’s capacity, it could lead to prolonged charging times, reduced efficiency, or even overheating and damage to the battery.

4. Safety Risks:

Using a single charger to mix-charge multiple batteries increases safety risks. Different batteries may have varying charging states and protection mechanisms, and the charger may not accurately assess each battery’s charging status, leading to overcharging, overheating, or other safety hazards.

Conclusion

The design and principles of lithium battery chargers directly impact the efficiency and safety of battery charging. Although it is technically possible to design chargers that support multiple types of batteries, it is generally not recommended to mix-charge different types or specifications of lithium batteries with a single charger. This practice may affect charging performance and introduce safety risks. To ensure the safety and longevity of lithium batteries, it is advisable to use chargers specifically designed for each battery type and strictly follow the manufacturer’s charging guidelines.
