1. What Are The Different Forklift Battery charger Types?

Most forklifts use one of two main types of batteries:

Lead-acid

Lithium-ion

Let’s briefly cover the basics of both.

Lead-Acid Batteries

Also called “wet” or “wet cell” batteries, lead-acid forklift batteries are the most common type.

They generate electricity through an electrochemical reaction between lead plates and the fluid electrolyte (a mixture of sulfuric acid and water).

They are widely available and less expensive than lithium-ion.

However, they require more maintenance, take longer to charge, and have a shorter lifespan.

Also, they vent out flammable hydrogen gas during charging, making them a greater safety concern.

Lithium-Ion Batteries

Lithium-ion batteries are a newer battery technology that’s gaining popularity.

2. What Are The Different Forklift Battery Voltages?

Common forklift battery voltages include:

12 volts. Used in small and light lift equipment such as powered pallet jacks

24 volts. Used in smaller lift equipment such as end-riders, center-riders, and walkie stackers

36 volts. Designed for mid-size lift equipment such as narrow aisle forklifts, 3-wheelers, and some 4-wheelers

48 volts. Used in larger lift equipment such as 4-wheel counterbalanced forklifts

72 volts. Used in larger counterbalanced forklifts with greater capacities

80 volts. Used in large material handling equipment such as pneumatic counterbalanced forklifts

Among these voltages, 24, 36, and 48-volt batteries are the most common.

3. How Much Sulfuric Acid Is In A Forklift Battery?

Forklift battery acid is composed of 30% to 50% sulfuric acid, and the remaining part of the electrolyte is water.

4. How Many Hours Does A Forklift Battery Last?

A lead-acid forklift battery is designed to last a full 8-hour shift when fully charged.

But this can vary depending on the usage and age.

For instance, a battery used for lifting heavy loads, long-distance travel, or rough terrain can wear out sooner.

5. How Long Do Forklift Batteries Last?

A lead-acid battery can last 1,500 charge cycles or 3 to 5 years.

And a lithium-ion battery can last 3,000 cycles or 10 years.

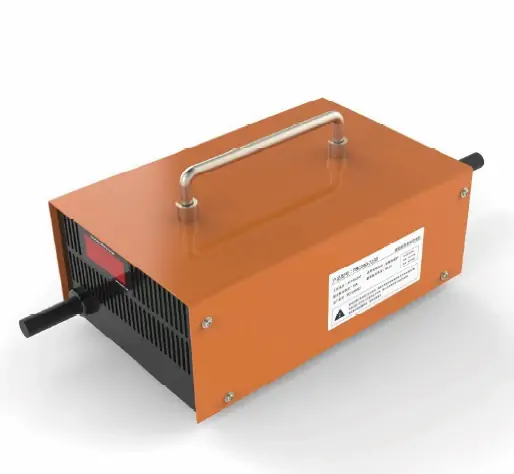

How Do You Choose An Electric Forklift Battery Charger?

If you already have a variety of forklift battery charger, selecting the right one for your battery comes down to 2 main things:

Matching the voltage. To find the charger voltage, check the charger’s nameplate. Then, compare it with the battery voltage, which is located on the battery’s nameplate, intercell connector, or model number

Matching the amp-hours. A battery's amp-hours is the total amount of current it can produce within one hour. You’ll want to choose a charger that is within 10% of the battery’s amp-hours. The battery’s amp-hours can be found on the nameplate, intercell connector, or calculated from the model number. The charger’s amp hours can be found on its nameplate

For a more detailed explanation, check out this article.

How To Calculate Battery Amp-Hours From the Model Number

If you can’t find the amp-hour rating of your forklift battery on its nameplate, you can calculate it from the model number.
