As the electric vehicle (EV) market continues to grow globally, the infrastructure for EV charging is evolving in various ways to meet diverse regional needs and use cases. This results in a complex landscape with numerous components and part numbers for Original Equipment Manufacturers (OEMs) to manage. However, three key descriptors are commonly used to categorize electric vehicle supply equipment (EVSE), including EV chargers: mode, level, and type. Understanding these descriptors is essential for navigating the world of EV charging.

Understanding EVSE Modes: How EV Chargers Connect to the Grid

The mode of an EVSE indicates how it connects to the electrical grid. Here’s an overview of the four primary modes:

• Mode 1: This mode connects to a standard household AC socket but lacks advanced safety features, making it largely unavailable in many regions due to safety concerns. Mode 1 is less commonly used for EV charging.

• Mode 2: Also connects to a standard household AC outlet, but Mode 2 includes important safety features within its in-cable control box (ICCB), offering a safer charging solution.

• Mode 3: Mode 3 connects to a wall box or charging station for AC charging and does not require an ICCB. Consumers in Europe may need to bring their own Mode 3 cable to use public AC charging stations.

• Mode 4: This mode is designed for high-speed DC charging, typically found at commercial charging stations. Mode 4 enables ultra-fast charging for EVs, which is especially beneficial for long-distance travel.

Charging Levels: Power Delivered to Your EV

The level of an EVSE refers to the amount of power it can deliver to an EV. The Society of Automotive Engineers (SAE) defines various charging levels based on the J1772 standard:

• Level 1: This is the most basic charging level, providing 120V and up to 1.8 kW of power. It’s ideal for overnight charging at home but offers relatively slow charging speeds.

• Level 2: Level 2 chargers deliver more power, typically ranging from 208V to 240V and up to 80A, with a maximum output of 19.2 kW. Many modern EVs can handle 11 kW of AC power, and some homes equipped with three-phase power can achieve this with 16A of current. Single-phase power may require up to 48A to reach this level.

• DC Level 1 and 2 (also known as Level 3): These chargers deliver fast DC charging, usually found at commercial stations. DC Level 2 can provide up to 1,000 VDC and may reach 500A in the future, enabling charging speeds of over 350 kW. This can charge around 80% of a typical EV battery in just 20 minutes.

EV Charging Interface Types: Global Compatibility Challenges

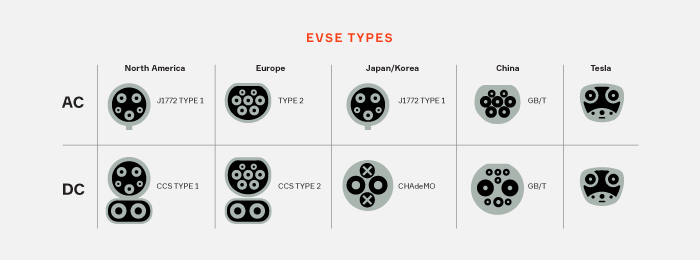

The type of interface refers to the vehicle's charging plug and socket. Due to the lack of a global standard, different regions have adopted distinct interfaces for AC and DC charging. Here’s an overview of the most widely used interfaces:

• North America and Korea: These regions use the J1772 Type 1 interface for AC charging and the CCS1 interface for DC fast charging.

• Europe: Europe uses the IEC Type 2 for AC charging and CCS2 for DC charging. The CCS2 standard is widely accepted across European countries.

• Japan: In Japan, the J1772 Type 1 interface is used for AC charging, but CHAdeMO is the standard for DC fast charging.

• China: China uses the GB/T interface for both AC and DC charging, which is unique to the region.

• Emerging Standards: The ChaoJi standard is gaining traction and may eventually be adopted in both China and Japan, providing a unified solution for both AC and DC charging in these countries.

Conclusion: The Complex World of EV Charging

As the electric vehicle industry grows, understanding the modes, levels, and types of EV chargers is essential for consumers, OEMs, and infrastructure developers. The diverse global standards and charging options can be overwhelming, but with the right knowledge, EV owners can easily navigate the complexities of EVSE and make informed choices for their charging needs. As EV adoption continues to rise, it’s crucial to stay updated on regional developments and emerging standards in the EV charging world.

By understanding these key descriptors—mode, level, and type—you can be better prepared to optimize your EV charging experience.
