An off-grid inverter is one of the key components in a solar electric system. Off-grid inverters allow the DC power generated by solar panels to be converted into AC power that can be used for household appliances, and the excess power can be sent back to the grid or stored in batteries. The inverter shop will provide a detailed description of how an off-grid inverter works, including its main components and the process of operation.

Basic Principle

The off-grid inverter is one of the core components of a solar power system. The main task of the off-grid inverter is to convert the direct current power generated by the solar panels into alternating current power for use by household appliances. The working principle of off-grid inverter can be divided into the following key steps.

DC Energy Harvesting: Solar panels convert sunlight into DC energy through the photovoltaic effect. This DC energy has a variable voltage and current, depending on the characteristics of the solar panel and the light intensity.

DC Energy Input: First, the solar panels deliver the generated DC energy to the input of the off-grid inverter. This process usually involves the use of a technique called maximum power point tracking (MPPT) to ensure maximum electrical output from the solar panels.

Inverter Conversion: Once the DC power enters the off-grid inverter, the main task of the inverter is to convert this DC power into standard AC power. This is accomplished through a series of electronic components and switches, the most important of which are the inverter's power semiconductor switches, such as metal-oxide-semiconductor field-effect transistors or silicon carbide transistors.

AC Power Output: The output of an off-grid inverter is converted AC electrical energy, and the voltage, frequency, and waveform of the off-grid inverter are usually matched to the standards of the local grid. This allows the off-grid inverter output to be connected directly to the home electrical system for use by electrical devices.

Power Management: Off-grid inverters also typically include power management features to monitor and optimize the performance of the solar system. This includes tracking the output of the solar panels, managing the energy storage system (e.g., batteries), and flowing excess power back to or from the grid to meet household needs.

Key Components of an Off Grid Inverter

Off-grid inverters are typically made up of several key components that work together to fulfill their function. The following are the main components of an off-grid inverter.

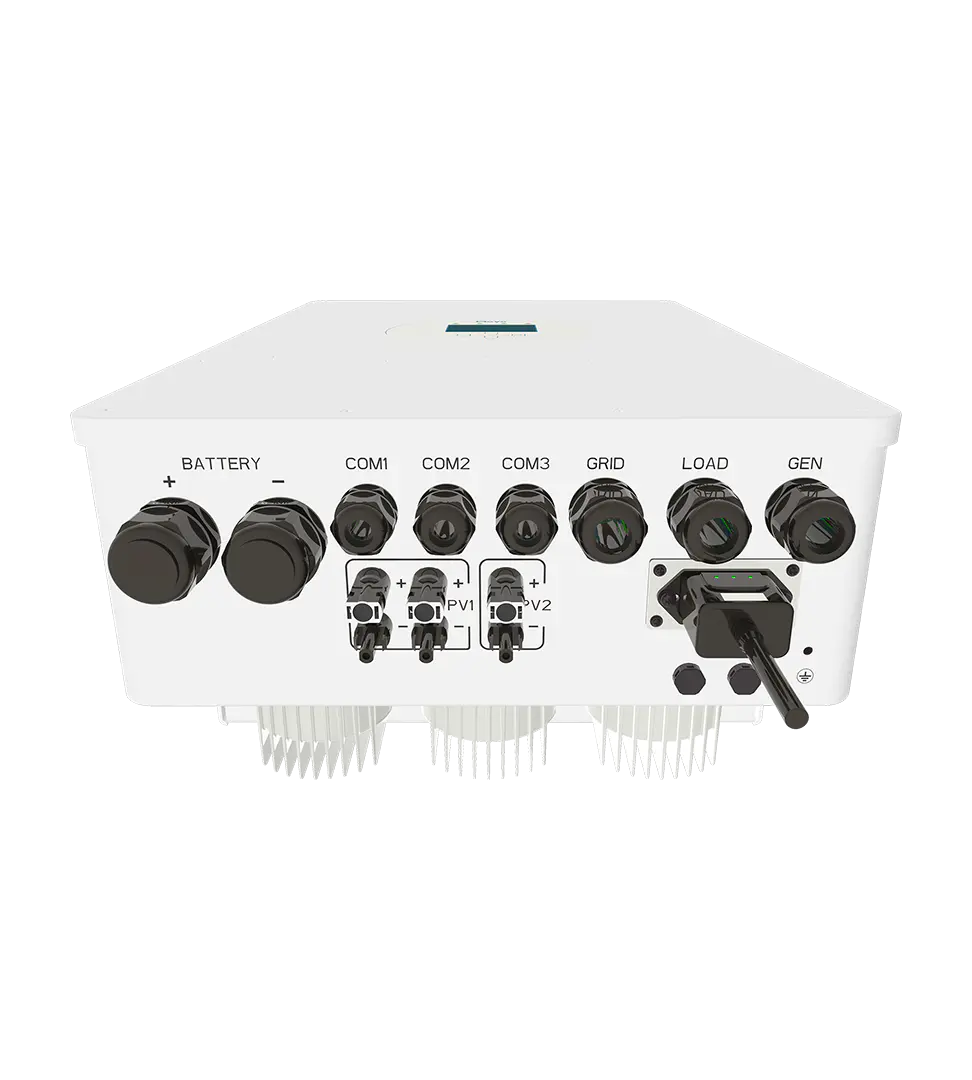

DC Input: This is the input port of the off-grid inverter and is used to connect the solar panels. The DC input of an off-grid inverter usually includes a DC circuit breaker, insulation monitoring, and a DC disconnect switch to ensure the safe operation of the system.

MPPT Controller: A maximum power point tracking (MPPT) controller is an electronic device used to track the optimal operating point of a solar panel to maximize power extraction. It constantly adjusts the operating point of the off-grid inverter by monitoring the input voltage and current to maximize power output.

Inverter Circuit: The off-grid inverter circuit is the core part of the off-grid inverter, which consists of a series of power semiconductor switches, capacitors, and inductors used to convert DC energy to AC energy. These switches control the flow of electrical energy to produce the desired AC output.

Controller: The controller of the off-grid inverter is its brain and is responsible for monitoring the system status, performing MPPT, managing the batteries (if any), protecting the system from faults and overloads, and enabling communication with other systems.

AC Output: This is the output interface of the off-grid inverter, through which the converted AC energy is supplied to household appliances or the grid. It usually also includes safety features such as overvoltage protection, overcurrent protection, and ground fault protection.

Data Communication Interface: Off-grid inverters typically have data communication interfaces that allow for system monitoring and remote control. These interfaces can be connected to a monitoring system or the Internet via wireless technology or a wired connection.

Work Process

The operating process of an off-grid inverter is highly complex and dynamic. The off-grid inverter needs to constantly monitor input conditions and make real-time adjustments to ensure optimal performance. The following is a typical operating process of an off-grid inverter.

Solar Panel Output: Solar panels capture sunlight and convert it into DC electrical energy. The characteristics of this electrical energy depend on the type of solar panel and the light intensity.

MPPT Control: The MPPT controller monitors the output of the solar panel and constantly adjusts the input voltage and current to ensure maximum power is extracted from the panel. This helps to maximize the system efficiency of the off-grid inverter.

Inverter Conversion: The off-grid inverter circuit converts the DC power from the solar panels into AC power. This involves converting the voltage from low-voltage DC to standard AC voltage and generating grid-compliant AC waveforms.

Power Management: The off-grid inverter's controller is responsible for monitoring the flow of power and managing the distribution of power based on household demand, battery status, and grid conditions. If there are batteries in the system, the controller also determines when to store excess power in the batteries for use at night or during low light hours.

AC Output: The off-grid inverter outputs the converted AC energy to home appliances or connects to the grid. In this way, home appliances can use solar power directly, while excess power can flow back into the grid, usually measured and billed through a meter connected to the grid.

System Monitoring and Remote Control: Off-grid inverters are usually equipped with a monitoring system that can monitor system performance in real-time and connect to other systems or the cloud via a data communication interface for remote monitoring and control. This allows the operation of the system to be tracked and optimized at any time.

Overall, off-grid inverters play a crucial role in solar electric energy systems. Off-grid inverters enable the efficient utilization and power supply of renewable energy by converting the DC energy generated by solar panels into AC energy. At the same time, off-grid inverters can also send excess power back to the grid or store it in batteries, improving the reliability and flexibility of the system. Through rational design and control, off-grid inverters can maximize the performance of solar energy systems and reduce dependence on traditional energy sources.
