The On-Board Charger (OBC) plays a crucial role in the world of electric vehicles (EVs), acting as a bridge that converts AC power from external sources into the DC power needed to charge the vehicle's battery. Let’s explore what the OBC is, how it works, and why it’s so important.

What is an On-Board Charger (OBC)?

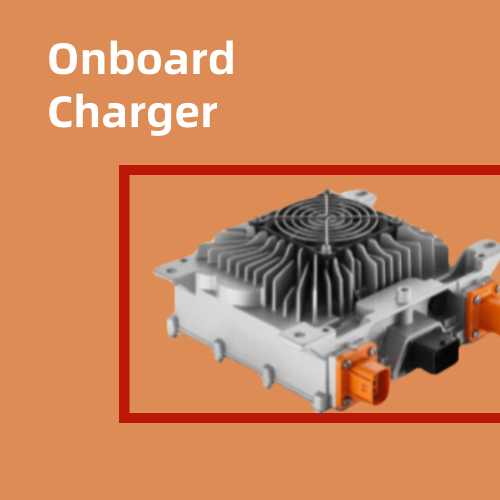

An On-Board Charger (OBC) is a vital component within an electric vehicle that is responsible for transforming alternating current (AC) from charging stations or wall outlets into direct current (DC) required to charge the vehicle's battery pack. It is typically housed within the vehicle, ensuring that the process of energy conversion and transfer is efficient and secure.

How Does the On-Board Charger Work?

The OBC operates in several key stages:

1. AC to DC Conversion: The first step is converting the AC electricity provided by external sources into DC power. This conversion is essential because electric vehicle batteries require DC power to store energy.

2. Power Control and Management: Once the AC is converted into DC, the OBC's control system adjusts the voltage and current to match the battery's specific charging needs. This process ensures that the battery receives the right amount of power, optimizing efficiency while prolonging battery life.

3. Safety and Monitoring: Modern OBCs come with advanced safety features, such as temperature sensors, voltage protection circuits, and communication systems that work with the vehicle's Electronic Control Unit (ECU). These features help prevent issues like overcharging, overheating, and maintain the overall safety and integrity of the charging process.

The Importance of the On-Board Charger in EVs

The OBC is indispensable for several reasons:

1. Versatility: It enables electric vehicles to charge from various AC sources, whether it's a home outlet or a public charging station.

2. Efficiency: By converting AC power to DC with minimal energy loss, the OBC maximizes the efficiency of the charging process.

3. Integration: The OBC is integrated into the vehicle’s powertrain, making efficient use of space and ensuring smooth compatibility with other vehicle systems.

4. Safety: The OBC enhances safety through its monitoring and regulation features, safeguarding both the vehicle and the charging infrastructure.

Future Innovations

As electric vehicles evolve, so will the technology behind On-Board Chargers. Future developments may include faster charging capabilities, support for bidirectional charging (vehicle-to-grid), and tighter integration with smart grid systems, further enhancing the overall charging experience.

Conclusion

The On-Board Charger is a cornerstone of electric vehicle technology. Its ability to efficiently convert AC to DC power ensures reliable, safe, and effective charging, making it an essential part of the push toward sustainable electric mobility. For more updates on the latest in EV technology, stay tuned to our blog.
