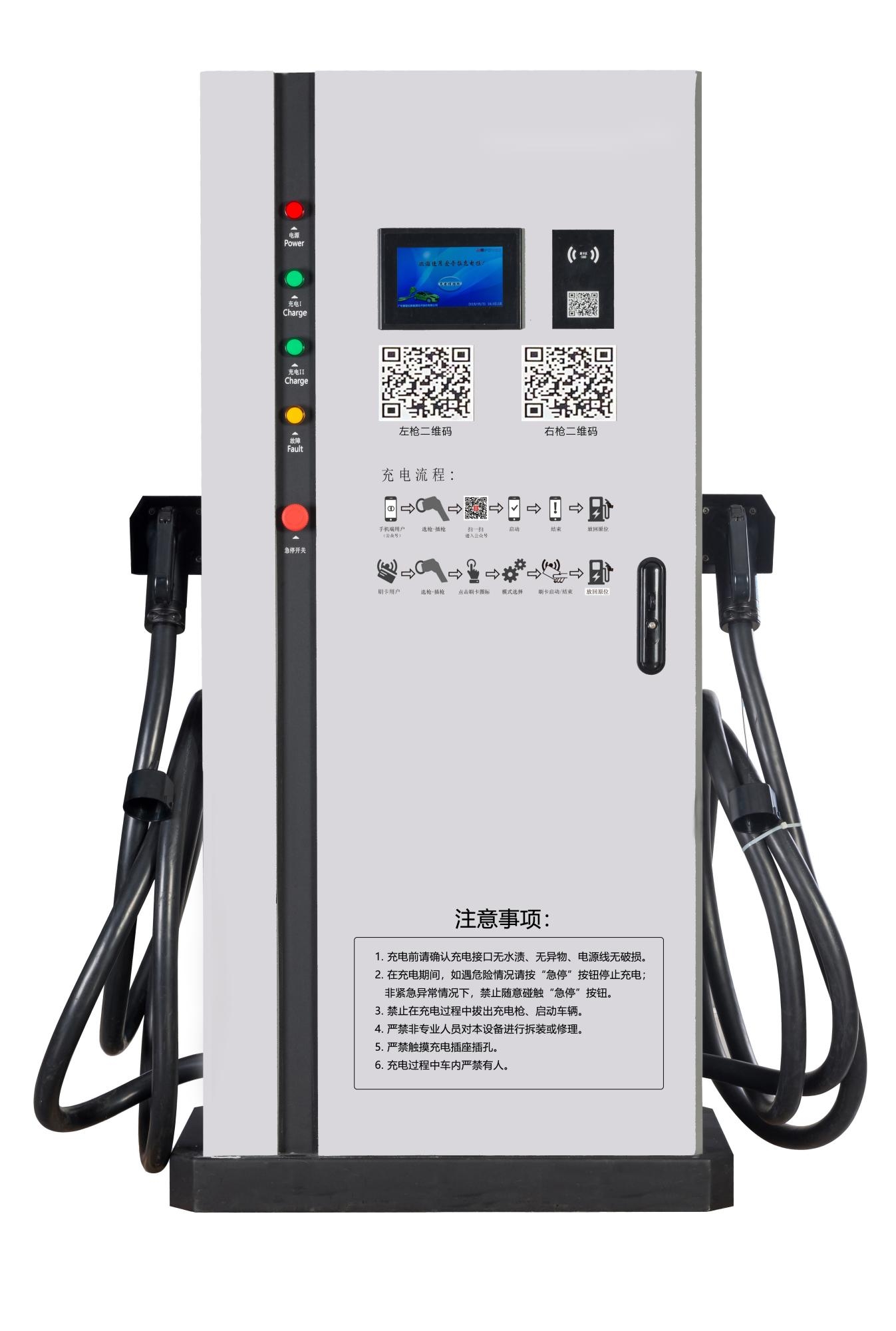

DC One Charge Pile

Model

EVSED30

EVSED60

EVSED120

EVSED180

Input Voltage

AC380V

Output voltage

DC200-500V/DC200-750V

Output Current

60A/40A

120A/80A

240A/160A

240A/160A

Power Factor

≥0.99

≥0.99

≥0.99

≥0.99

Harmonic Content

≤5%

≤5%

≤5%

≤5%

Voltage Error

≤±0.5%

≤±0.5%

≤±0.5%

≤±0.5%

Insulation Resistance

≥10MΩ

≥10MΩ

≥10MΩ

≥10MΩ

AC leakage protection

Have

Have

Have

Have

dB

≤65DB

≤65DB

≤65DB

≤65DB

Efficiency

≥95%

≥95%

≥95%

≥95%

Screen

LCD HD touch screen

LCD HD touch screen

LCD HD touch screen

LCD HD touch screen

Connector

Single gun / double gun compatible with the same charge

Single gun / double gun, support power distribution, compatible with the same charge

Communication

StandardRS485

Standard RS485, can expand CAN, GPRS, Ethernet

Charging Mode

Automatically fill, press time, press battery, press amount, etc.

IP Grade

IP54

Operation Temperature

-25℃~+55℃

-25℃~+55℃

-25℃~+55℃

-25℃~+55℃

Storage Temperature

-40℃~+60℃

-40℃~+60℃

-40℃~+60℃

-40℃~+60℃

Relative Humidity

5%~95%

5%~95%

5%~95%

5%~95%

Altitude

≤2000m；When using in a special area, explain when ordering according to the environmental conditions of the day.

Lightning Protection

Class C lightning arrester

Connector‘s Life

≥10000 Times

Dimension（H×W×D）

1500×610×360(MM)

1500×610×360(MM)

1620×710×459(MM)

1780×700×517(MM)

Billing

RFID card / scan QR code / APP payment (optional)

APP

Ethernet module / 4G module (optional)
