Product Details:
|
| Input Voltage: | AC 380V ±15% | Rated Power: | |
|---|---|---|---|
| Output Voltage: | 80V | Output Current: | 10A-100A |
| Dimension: | 480*480*775 / 410*500*505 | Weight: | 64KG / 40KG |

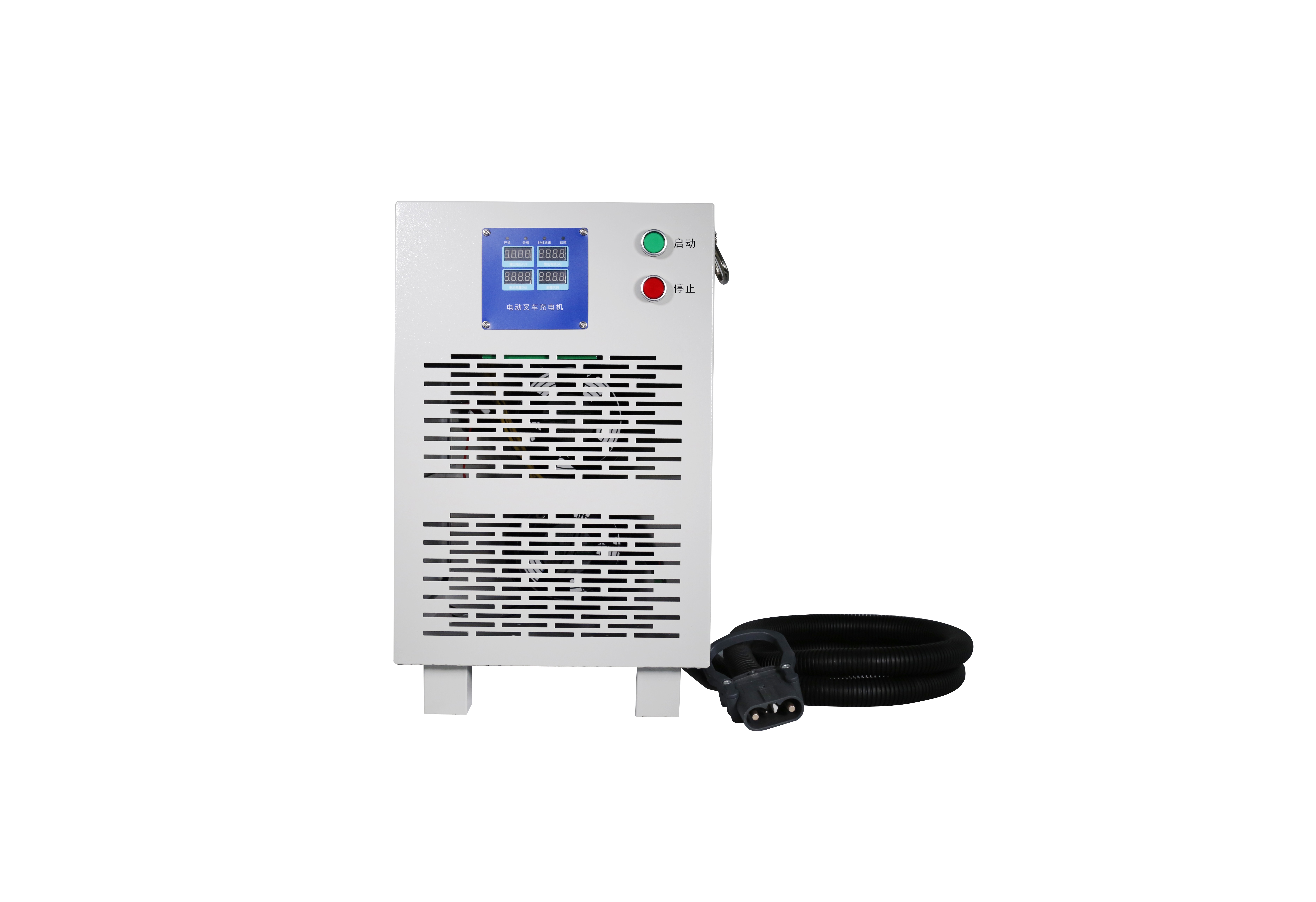

This series of high-frequency charging piles have high conversion efficiency, high voltage and, current stabilization accuracy and, advanced transient response index, smooth output current waveform with small ripple. In addition, due to the adoption of high-frequency switching technology, power supply has the characteristics of power saving, easy control, wide, adjustable range, small volume, and light weight.
Overview of working principle:
The charging pile is mainly composed of a rectifier filter circuit, high-frequency switching inverter circuit, PWM control circuit, output rectifier filter circuit, reverse connection protection, voltage regulator, voltage limiter circuit, current regulator, current limiter circuit, protection circuit, and 12V auxiliary power circuit, etc. It is also equipped with a CAN-BUS communication function.
Model | 48V100A | 48V150A | 48V200A |
Dimension(mm) Size(mm) | 480*480*775 / 410*500*505 | 450*350*550 | 480*480*775 / 420*420*740 |
Net Weight | 64KG / 40KG | 45KG | 45KG |
Input parametersInput | AC 380V ±15%, 50Hz/60Hz | ||
Input Wire | 3*4+1*2.5mm2 (Three phases+Ground ) 3.5m | 3*6+1 *4mm2 (Three phases+Ground) 3.5m | |
Output Voltage | Suitable for 80V battery packs (customisable) | ||
Output Current | 10A-100A | 15A-150A | 20A-200A |
Efficiency | >95% | ||
Dielectric Strength | (Input - Output): 2500VAC 5mA,1 Min (Input - Housing)： 2500VAC 5mA,1 Min (Output - Housing)： 1500VAC 5mA,1Min | ||
Insulation Resistance | (Input-Output)： DC1000V>200MQ (Input - Housing)： DC1000V>50MQ (Output - Housing): DC1000V>50MQ | ||
Conversion Frequency
| 18kHz ± 2kHz (three-phase full-bridge IGBT module conversion circuit) | ||
Ingress Protection | IP 20 | ||
Cooling system | Forced Air-cooling | ||
Operating temperature | -10°C~45°C | ||
Storage or portage temperature | -40°C~60°C | ||
Humidity | 10%~90X：(No ice) | ||
Noise | w70dB | ||
Operational Environment | (Indoor) | ||
Altitude | below2000m | ||
Output Connector&Wire (Optional) | (GB Connector),about 3m / (REMA Connector),about3m | ||
Using IGBT module full-bridge inverter technology, small size, light weight, constant current and constant voltage, small current ripple, and effectively solves the harmonic problem. It is a high-reliability product with strong anti-interference ability and environmental suitability.
Reliable:
Integrated automation technology provides outstanding durability and protection in fully autonomous or manual mode. Advanced communication and control architectures ensure reliable, scalable performance to accommodate dynamic changes in production schedules.
Flexible: The forklift utilizes a simple switch to select between automatic and manual operating modes. Trained staff can operate the intuitive user interface, returning to autonomous operation after completing manual procedures.
Performance:
Leverage the capabilities of each automation and forklift component to improve overall system performance.
Scalable:
Automation solutions can support application needs of any size and complexity in one or more locations. Choose a solution that evolves with your needs and continue to leverage it along the way.
