1.5kw boat on board charger ev home charger electric car charging stations

1.5kw boat on board charger ev home charger electric car charging stations
Product Details:
Place of Origin: China
Brand Name: EVL charger
Certification:
Model Number: SMCZ1
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details: carton
Payment Terms: T/T
Details
Input Voltage: AC90V~264V Rated Power: 1.5kw
Output Voltage: 16.5V-99.0V Output Current: 15A-30A
Dimension: 282x146x82(mm) Weight: 3kg

Description

1.5kw boat on board charger ev home charger electric car charging stations

The on board charger adopts fully closed pouring and sealing heat-conducting silica gel process, with protection grade up to IP67, good shock resistance, good heat dissipation performance and long service life.The products are applicable to lithium battery, lead-acid battery, nickel metal hydride battery, etc., and can be used for battery pack cycle charging of electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, golf carts, ships, communication equipment, etc.



Parameter Specification


Basic specification

NO

Terms

Parameter

1

Ac Input Wide VoltageRange

AC90V~264V

2

AC Input Frequency Range

40~70Hz

3

With APFC FunctionPower Factor

≥0.98

4

Soft Switching TechnologyEfficiency

≥93.0%

5

Protection Level

IP67

6

Operating Temperature

-40℃~+60℃

7

Storge Temperature

-55℃~+100℃

8

CAN Communication Function

Optional

9

12V3A Auxiliary Power Supply

Optional

10

LED Light Indicator for Charging Process

Standard

11

Noise

≤45dB

12

Overall Size

282x146x82mm

13

Net Weigh

2.7kg

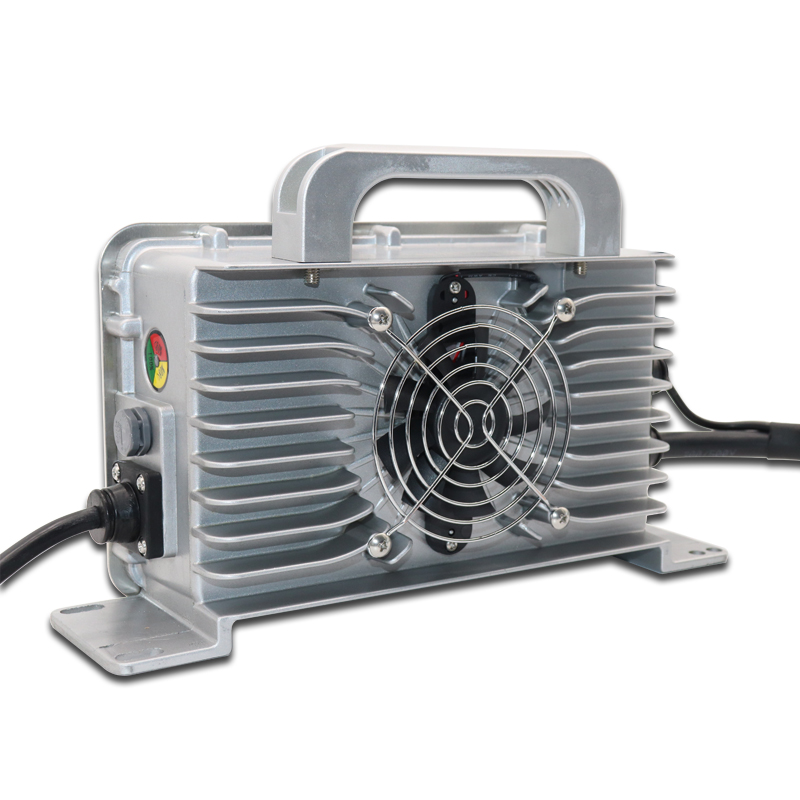

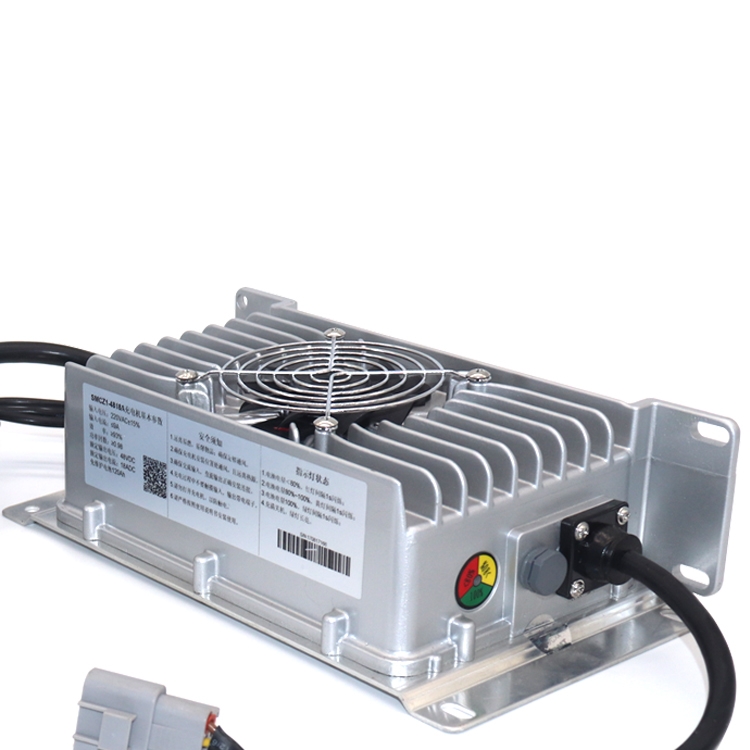

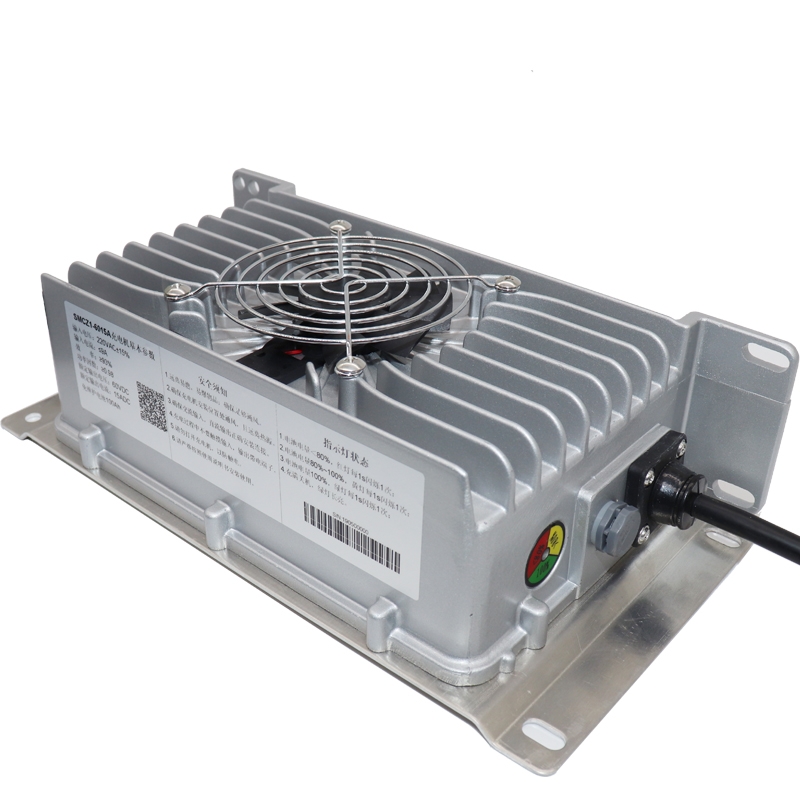

Detailed Images



1.5kw boat charger.jpg   electric car charger.jpg
