Product Details:
|
| Input Voltage: | AC 90~264V | Rated Power: | |
|---|---|---|---|
| Output Voltage: | 24V~72V | Output Current: | |
| Dimension: | 282x168x90(mm) | Weight: | 3.8g |

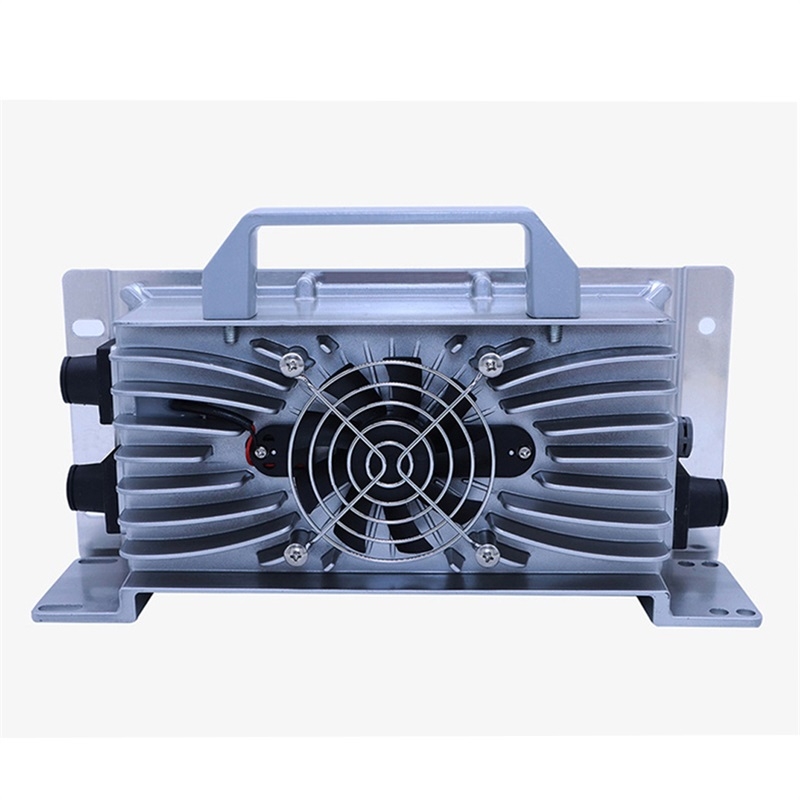

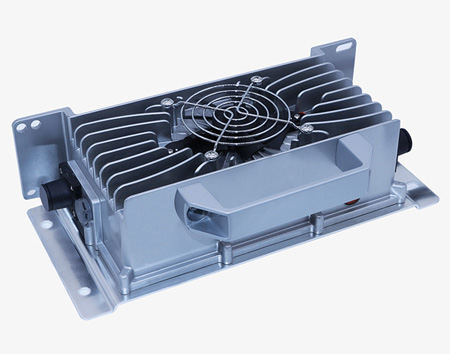

The charger adopts the completely closed potting and sealing thermal silicone technology, the protection grade can reach IP67, good shock resistance, good heat dissipation performance and long service life.
Models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
SMCZ6-2430A/2430C | AC 90~264V | 24V | 33.0V | 30A/30A |
SMCZ6-3625A/3620A/3618C | AC 90~264V | 36V | 49.5V | 25A/20A/18A |
SMCZ6-4825A/4820A/4815C | AC 90~264V | 48V | 66.0V | 25A/20A/15A |
SMCZ6-6020A/6015A/6012C | AC90~264V | 60V | 82.5V | 20A/15A/12A |
SMCZ6-7218A/7215A/7210C | AC 90~264V | 72V | 99.0V | 18A/15A/10A |
Dimension: 282x168x90(mm) Net weight: 3.8g | ||||
Item | Specifications |
AC input Wide Voltage, Range | AC90V~264V |
AC Input Frequency Range | 40~70Hz |
With APFC function, Power Factor | ≥0.98 |
Soft Switching Technology, Efficiency | ≥93.0% |
Protection Level | IP67 |
Operating Temperature | -40℃~+ 60℃ |
Storage Temperature | -55 ℃~ + 100 ℃ |
CAN Communication Function | optional |
LED Light indicator for Charging Process | Standard |
Noise | ≤45 dB |
1. Overheat protection
When the internal temperature of the charger exceeds 80 ° C, the current of the charging machine automatically decreases; when the temperature exceeds 85 ° C, the charging machine is turned off for protection; when the temperature drops, the charging machine automatically resumes.
2. Short circuit protection
When the output is short-circuited, the charger automatically turns off the output. After the fault is removed, the battery can be re-connected to resume charging.
3. Battery reverse protection
When the battery is reversed, the internal circuit of the charger will automatically disconnect the connection with the battery, no charging, and will not damage the charger.
4. Input undervoltage and overvoltage protection
When the input voltage is lower than 90V or higher than 264V, the charger will shut down and automatically resume work after the voltage is normal.
5. Full automatic shutdown
Automatic shutdown after full charge
Products are suitable for lithium batteries, lead-acid batteries, nickel-metal hydride batteries, etc., can be used in electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, sanitation vehicles, golf carts, etc. Cycle charging of patrol vehicles, ATVs, ships, communication equipment, AGV intelligent robots and other electric vehicles and special equipment.
