Product Details:
|
| Nominal Capacity: | Nominal Voltage: | ||
|---|---|---|---|
| Internal Impedence: | Operating Votage: | ||
| Dimension: | 145*90*50mm | Battery Weight: | 2kg |

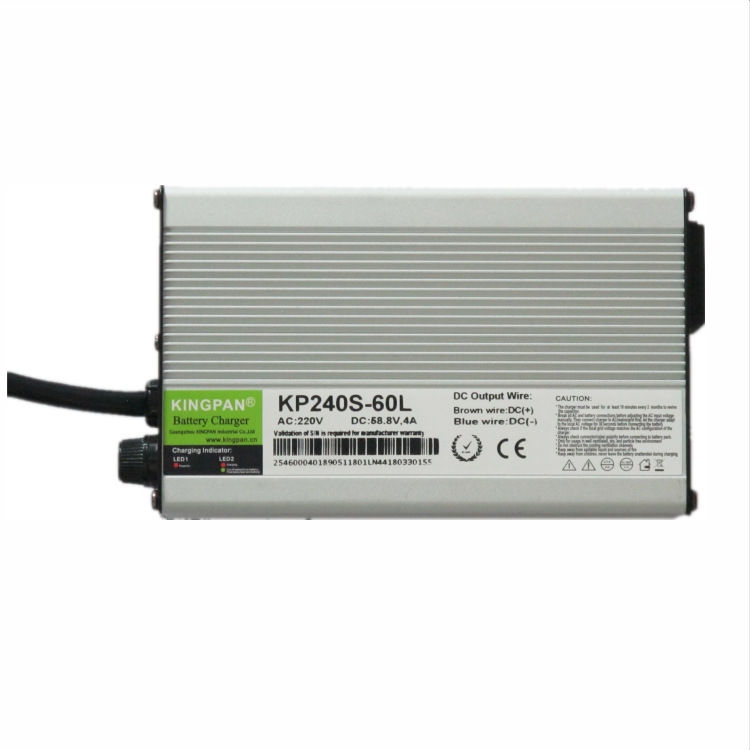

Scooter power tool intelligent 24V/36V/48V 240W lithium battery charger
With independent research and development capabilities, it has made major breakthroughs and innovations in the three categories of lead-acid batteries, lithium batteries, and nickel-metal hydride batteries. "With the international advanced level, the charging time is shortened by one third, the full discharge capacity is extended by 20%, and the battery life is extended by 30%.
1.Product Description：
The charger products range from 60W-100KW, with 36 models and 268 specifications, covering almost 100% of the charging needs of power batteries and energy storage batteries.
Charger (machine) is widely used in AGV storage equipment, two.wheeled electric vehicles, three.wheeled electric vehicles, electric forklifts, electric sightseeing cars, and golf carts, electric surfboards, model airplanes, robots, low.speed electric vehicles, electric vehicles , Large.scale energy storage batteries and other electric equipment.
2.Parameter Specification:
Basic specification | ||
NO | Terms | Parameter |
1 | Input Wide Voltage Range | 110V/220V |
2 | Rated Power | 240W |
3 | Dimension | 145*90*50mm |
4 | Out Voltage Range | 14V-90V |
5 | Output Current | 2.5A-10A |
3C Rated Voltage Range | 210V-230V | |
7 | Special Function | Quiet and Dustproof |
8 | Protection Function | Leakage Protectionl |
9 | Shell Material | Aluminum |
10 | Weight | 2Kg |
3. KP240S Series Models Sheet:
Item No. | Input Voltage range | Output Rated Voltage | Max output voltage | Max output current |
KP240S-10A | 110V-220V | 14V | 17V | 10A |
KP240S-8A | 110V-220V | 25V | 30V | 8A |
KP240S-5A | 110V-220V | 40V | 45V | 5A |
KP240S-4A | 110V-220V | 50V | 62V | 4A |
KP240S-3.5A | 110V-220V | 65V | 75V | 3.5A |
KP240S-2.5A | 110V-220V | 84V | 90V | 2.5A |
4. Detailed Images：
