Product Details:
|
| Input Voltage: | AC90V~264V | Rated Power: | 3.3KW |
|---|---|---|---|
| Output Voltage: | 36~161V | Output Current: | 32A |
| Dimension: | Weight: | About 10kg |
1. Best ev charger level 2 charging station 108v 32A 3.3kw TC Elcon charger
TC charger is widely used for battery-charging cycles in electric vehicles such as electric forklift, golf cars, electric trucks, electric tour bus, electric yacht, cleaning machines, or Uninterruptible Power Supply (UPS), solar energy, wind power dynamo and electric communication system on the railway etc.
TC charger is applicable for various lithium batteries like LiFePO4, LiMn2O4 etc. TC charger features light weight, small volume, stable performance, high efficiency and reliable security etc., TC charger can be switched automatically between the floating and balancing charging and also has the protection functions of reverse connection, output short-circuit and overload and so on.64kw TC charger is widely used for battery-charging cycles in electric vehicles such as electric forklift, golf cars, electric trucks, electric tour bus, electric yacht, cleaning machines, or Uninterruptible Power Supply (UPS), solar energy, wind power dynamo and electric communication system on the railway etc.
2. 108v 3.3kw Charger Parameter Specification:
Basic specification | ||
NO | Terms | Parameter |
1 | Input voltage range | AC90V~264V |
2 | Frequency | 45Hz~65Hz |
3 | Power factor： | ≥0.99 |
4 | Efficiency at full loading | ≥93% |
5 | Mechanical impact and vibration grade | QC/T 895－2011 |
6 | Protection grade | IP67 |
7 | Operation temperature | - 40℃～85℃ |
8 | Storage temperature | - 40℃～105℃ |
9 | Control | CAN or Enable |
10 | Protection | Output over-voltage, output low-voltage, short-circuit, input polarity reverse, over-temperature, communication error |
11 | Size | 198(length)x244(width)x95(height)（nature-cooled） |
12 | Cooling way | Enforce Air Cooling |
13 | Max output current | 32A |
14 | Output voltage range | 36~161V |
15 | Model-lithium battery （Can control） | HK-MF-108-32 |
16 | Nominal voltage | 108V |

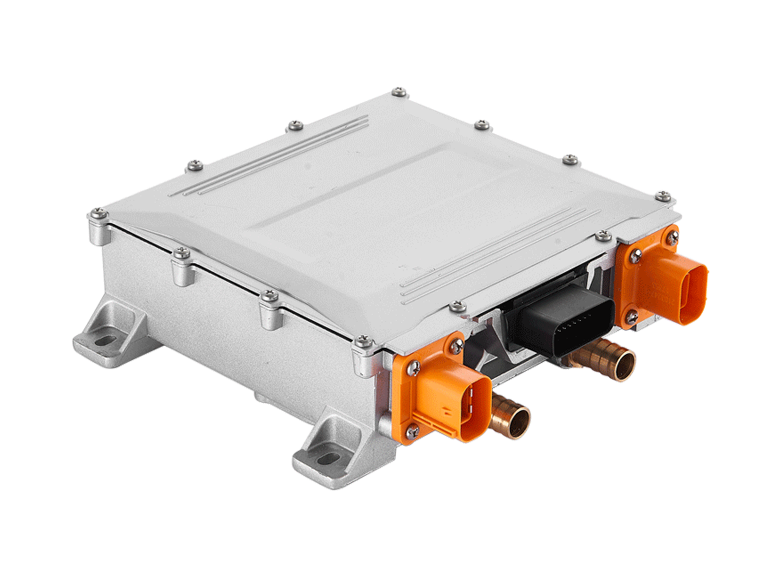

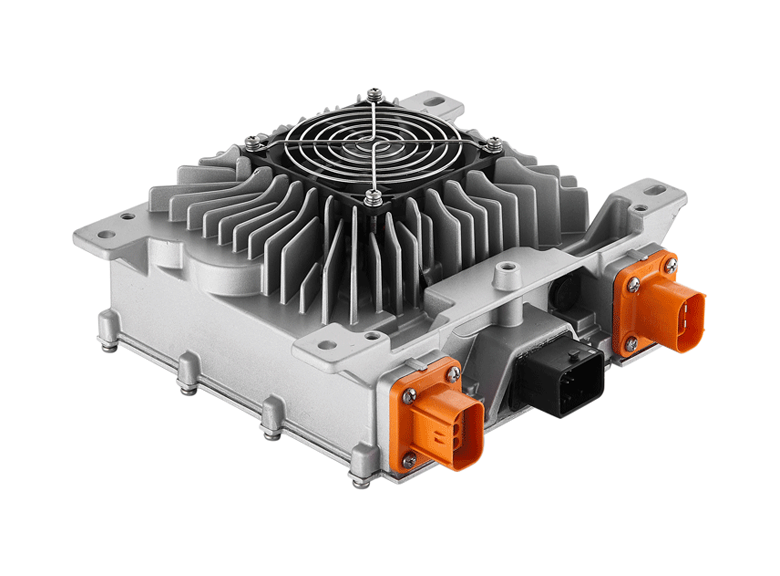

3. Detailed Images:
