Product Details:
|
| Input Voltage: | AC90V~264V | Rated Power: | 6.6KW |
|---|---|---|---|
| Output Voltage: | 50V-650V | Output Current: | 14A-46A |
| Dimension: | 270(length)x230(width)x110(height)mm | Weight: | About 10kg |
TC charger is widely used for battery-charging cycles in electric vehicles such as electric forklift, golf cars, electric trucks, electric tour bus, electric yacht, cleaning machines, or Uninterruptible Power Supply (UPS), solar energy, wind power dynamo and electric communication system on the railway etc.
TC/Elcon charger -- High Frequency Battery (PFC) Charger with Power Factor Control.Buy top quality and efficient TC charger (PFC charger) for various kinds of lithium battery. These multi-featured tc chargers with switch charging modes and protection functions are used for electric vehicles and power systems. Explore our range of products and their technical specifications matching your requirements. Contact us to request a sample order and discuss to find the best prices ever! Buy affordable & durable TC/elcon charger (PFC charger) with international shipping. Place order online for export quality high performance lithium battery tc charger for electric vehicles.
2. Parameter Specification:
Basic specification | ||
NO | Terms | Parameter |
1 | Input voltage range | AC90V~264V |
2 | Frequency | 45Hz~65Hz |
3 | Power factor： | ≥0.99 |
4 | Efficiency at full loading | ≥93% |
5 | Mechanical impact and vibration grade | QC/T 895－2011 |
6 | Protection grade | IP67 |
7 | Operation temperature | - 40℃～85℃ |
8 | Storage temperature | - 40℃～105℃ |
9 | Control | CAN or Enable |
10 | Protection | Output over-voltage, output low-voltage, short-circuit, input polarity reverse, over-temperature, communication error |
11 | Size | 270(length)x230(width)x110(height)（nature-cooled） |
12 | Cooling way | nature-cooling, liquid-cooling, Enforce Air Cooling |
Series Models Sheet:
Nominal voltage | Max output current | Output voltage range | Cooling way | Model-lithium battery （Can control） |
144V | 46A | 50~198V | Liquid cooling | HK-LW-144-46 |
312V | 20A | 110~440V | Liquid cooling | HK-MW-312-20 |
540V | 14A | 163~650V | Liquid cooling | HK-MW-540-14 |
144V | 46A | 50~198V | Enforce air cooling | HK-LF-144-46 |
312V | 20A | 110~440V | Enforce air cooling | HK-LF-312-20 |
540V | 14A | 163~650V | Enforce air cooling | HK-LF-540-14 |

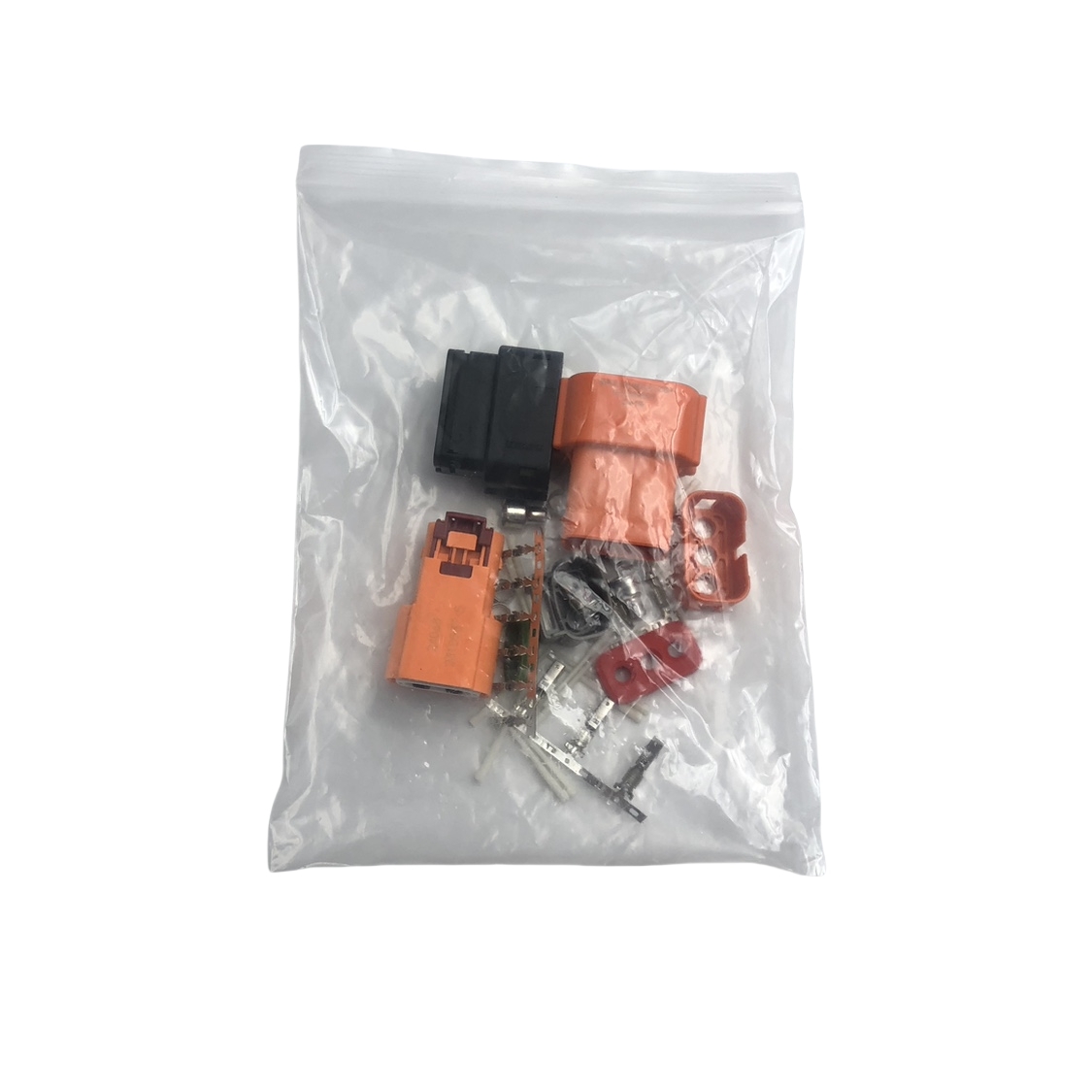

4.Detailed Images:
