Product Details:
|
| Input Voltage: | Rated Power: | 1200w | |
|---|---|---|---|
| Output Voltage: | 24v~84v | Output Current: | 12a~25a |
| Dimension: | 252.5mm*160mm*82.5mm | Weight: |

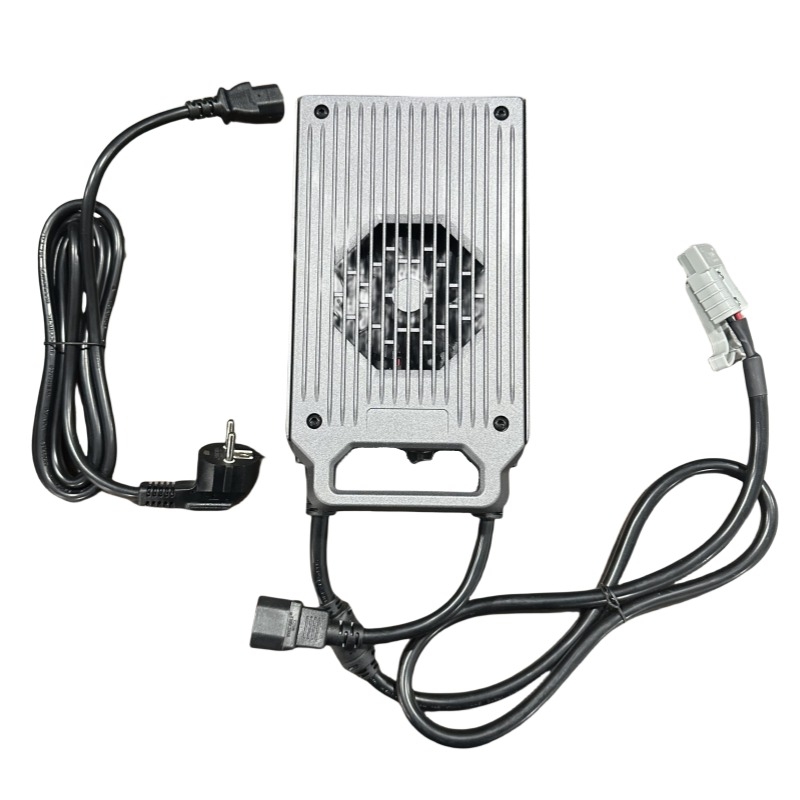

The DALY 1200W 1200CG4825L 1200CG series charger is a product designed to supplement electric energy for electric vehicle power batteries according to the national charger standard. The product not only has the advantages of high efficiency, small size, high stability, long life, but also has the characteristics of high protection level, high reliability, complete protection functions, etc., which is the ideal power supply for electric vehicle charging. The charger built-in thermal sensor, external temperature sensor temperature probe, with overheating protection function, can be automatically restored.
● Excellent performance: high efficiency, small size, high stability, long life
● High protection level: fully sealed process, up to IP65 protection level
● High reliable protection function: built-in thermal sensor, external temperature sensor, temperature probe, with overheating protection function
Basic Parameters
Parameter | Specification |
Rated Input Voltage Range | AC 100~240V |
Input Current | ≤12A |
Rated Output Voltage | 24V |
48V | |
60V | |
72V | |
84V | |
Maximum Output Voltage | 34V |
60V | |
73V | |
88V | |
103V | |
Output Maximum Current | 25A |
25A | |
20A | |
15A | |
12A | |
Power Factor | ≥0.99 |
Efficiency | ≥91% |
Maximum Output Power | 1200W |
Electrical Parameters
Parameter | Specification | |
Input | frequency | 45-65Hz |
standby power consumption | ≤ 5W | |
Main Output | output method | Constant voltage / Constant current |
maximum output power | 1200W | |
constant pressure accuracy | ±1% | |
constant current accuracy | ±2% | |
ripple voltage coefficient | ≤5% | |
Low Voltage Output | output method | Constant Voltage (Optional) |
output voltage | 12V | |
Rated current | 0.2A | |
maximum current | 0.2A | |
Communication Function | CAN communication | Available (optional) |
baud rate | Optional | |
terminator resistor | Optional | |
Locking Function | normally open / normally closed locking function | Optional |
External Light Function | external indicator light wire | Optional |
Infrared Function | with infrared function | Optional |

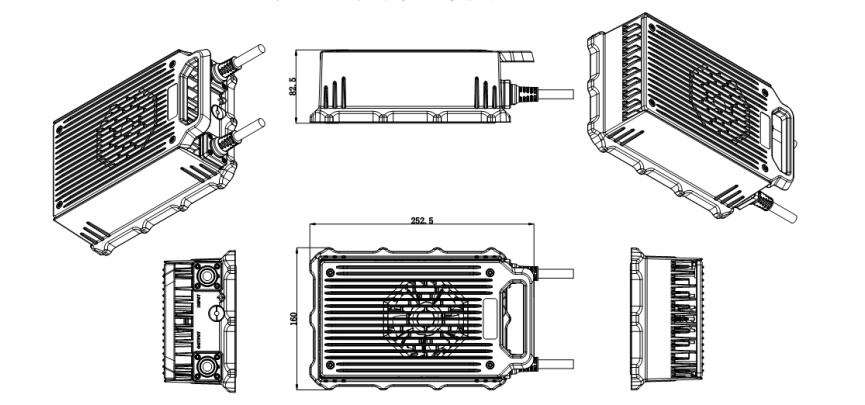

The maximum outer size: 252.5mm*160mm*82.5mm
Suitable for lithium battery, nickel metal hydride battery, nickel cadmium battery, etc. It can be used for battery pack cycle charging or floating charging of electric motorcycle, sightseeing car, patrol car, forklift truck, communication, electric power, ship and so on.
1. The power supply with reliable grounding must be used, and the charger shell must be reliably grounded; The ground wire of the power supply should be buried in the ground and cannot be connected with public facilities such as water pipes; Distinguish between the ground line and the neutral line of the power supply, and cannot connect the two wires together.
2. Must use a separate socket, and the socket is a certified qualified product.
