300W DC Wireless Charger wireless charging station for car

1.300W DC Wireless Charger wireless charging station for car

Overview:

The PWS-300-DC-48N1 charger is a device that uses the resonant electromagnetic induction principle to achieve non-contact charging and powering of 48V DC electrical devices. The device can be used with lithium batteries, lead-acid batteries, capacitive loads, etc.

The charger input uses 220VAC±20%, 50/60Hz power supply, output power up to 300W, output voltage 20-60VDC, nominal output voltage 48VDC, rated charging current 5A.

The transmitter chassis uses LEDs for status indication, providing a clear visual indication of the current charger operating status.

This charger consists of four major parts: transmitter chassis, transmitter coil, receiver chassis and receiver coil.

Note: The schematic diagram only shows the name of each part, the specific "4 installation dimensions and wiring port description" shall prevail.

1    Transmitter chassis

2    Transmitter chassis antenna head

3    Transmitter chassis power cable input

4    Transmitter coil

5    Transmitter chassis and transmitting coil connection cable

6    Transmitter chassis and transmitting coil connection line butt terminal

7    Receiver Coil

8    Receiver Chassis

9    Receiver chassis and receiving coil connection line

10   Receiver chassis and receiving coil connection line docking terminal

11   Receiver chassis antenna head

12   485 communication cable

13   Battery cable, red and black total 2pcs

14   Robotics

2.Parameter Specification:

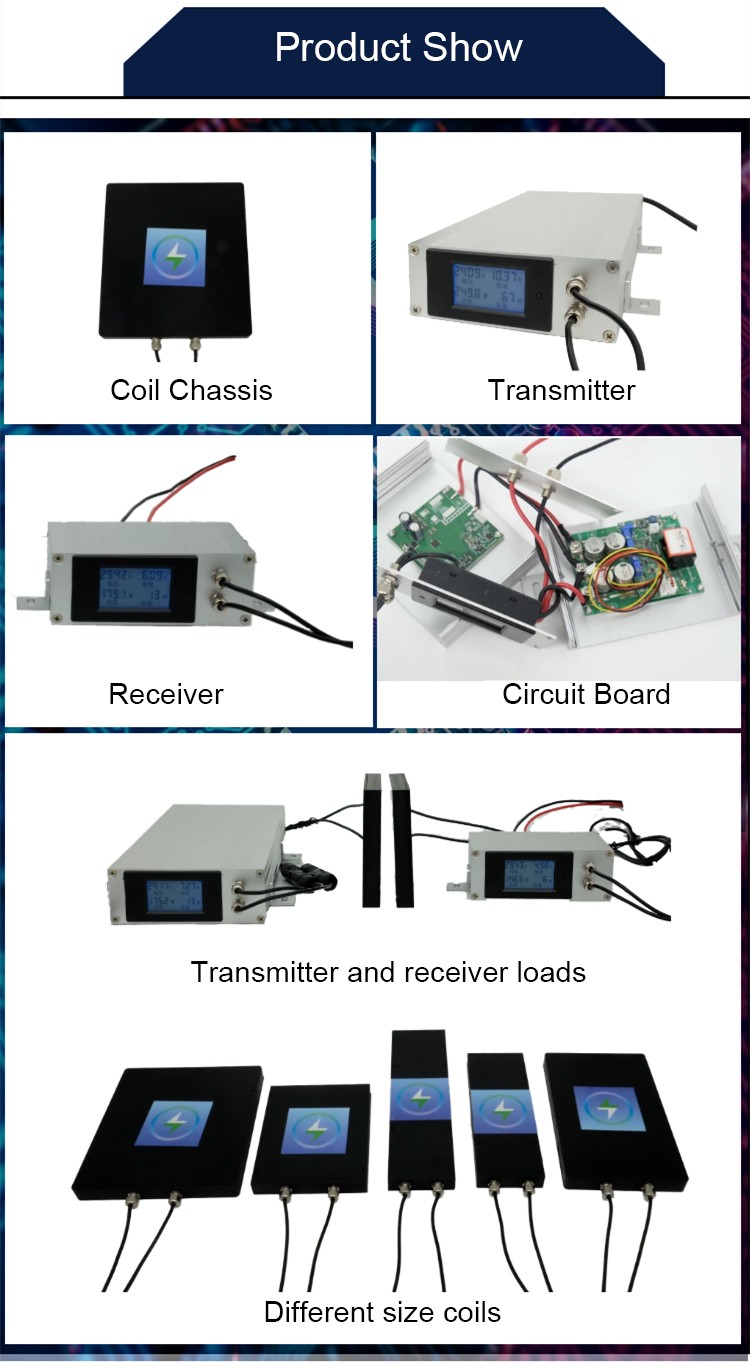

3.Detailed Images：

4.Application:
