Product Details:
|
| Nominal Capacity: | 153Ah | Nominal Voltage: | 14.68V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |
| Dimension: | 355(±1)*151.5(±1)*108.5mm | Battery Weight: | ≤11.6 kg |

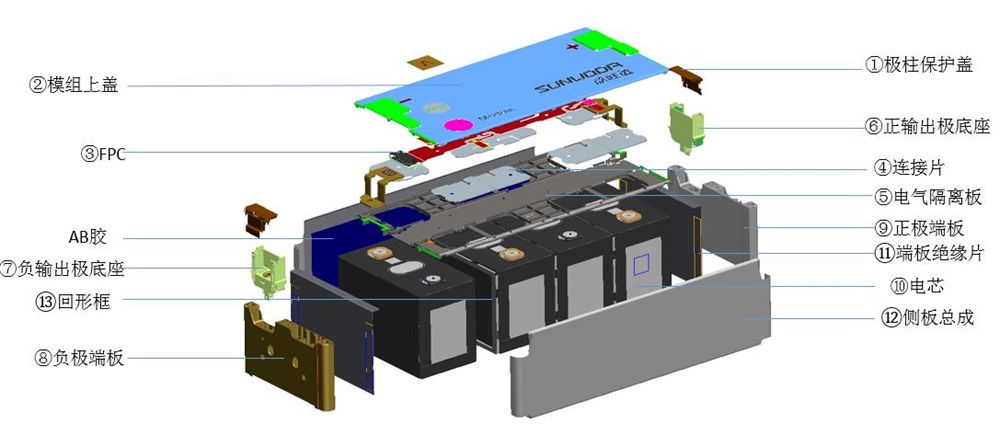

The VDA355 battery module is a standard size battery module. The dimensions are: length 355*width 152*height 108.5mm. This battery module has the characteristics of good versatility, high energy density and compact size. It is suitable for various new energy passenger cars and commercial vehicle battery packs of VDA355 module size. It can also be used for energy storage, ships, VGA, and mining machinery. and other application scenarios.
*We have some VDA 355 battery modules in stock in the United States, please contact us if you need them.
Item | Parameters |
Cell type | NCM Battery |
Cell combination method | 1P4S |
Nominal voltage | 14.68V |
Working voltage range | 11.2V~17V（-10℃＜T≤55℃） |
10V～17V（-20℃＜T≤-10℃） | |
8.2V～17V（-30℃≤T≤-20℃） | |
Nominal capacity | 150Ah/153Ah |
Total energy | 2202Wh |
SOC window | 5%~97% |
Weight | ≤11.6kg |
Size | 355(±1)*151.5(±1)*108.5mm |
Continuous discharge power | ≥1.97KW |
10s peak discharge power | 7.4KW |
Continuous charging power | ≥1.97KW |
10s peak charging power | 6.8KW |
DCR | ≤3mΩ |
Charge and discharge energy efficiency | 95% |
Module cycle life | ≥2000cycle |
Range of working temperature | Discharge：-30~55℃ |
Charger：-20~55℃ | |
Storage temperature range | -40℃——60℃ |
Insulation | ≥550MΩ |
Pressure resistant | ≤1mA |
Module fast charging time | ≤45Min |
