Product Details:
|
| Nominal Capacity: | 27Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | AC 0.9 mΩ±0.3 mΩ,DC ≤3.0 mΩ | Operating Votage: | 2.0 V～3.65 V |
| Dimension: | (21.3±0.9)× (100.5±0.5)× (144.8±0.5)mm | Battery Weight: | 605 g±18g |
IFP20100140A-27Ah, max continuous discharge rate 6C Gotion battery cell 3.2V 27Ah widely used in electric tools/ bicycle/ motorcycle/ scooter energy storage, home solar power system, etc.
1. Qualified for UN38.3/MSDS, RoHS, CE, TUV, UL with high safety
2. More than 5000 cycles under the designed working condition
3. Integral safety valve is used to enhance safety
4. High Energy Density
Parameter | Specification | Remark |
Nominal Voltage | 3.2V | / |
AC Internal Resistance | 0.9 mΩ±0.3 mΩ | / |
DC Internal Resistance | ≤3.0 mΩ | 50%SOC(5C/10 s，25 ℃) |
Rated Capacity | 27.0 Ah | 1C standard charge and discharge, 25 ℃, |
Operating Voltage | 2.0 V～3.65 V | / |
Energy Density | ≥140 Wh/kg | 0.33C discharge |
Optimum Charging/Discharge Temperature Range | 10 ℃～35 ℃ | / |
Storage Temperature Range | -40 ℃～60 ℃ | |
Max Continuous Discharge Current | 4C
| Single battery at 15 ° C ~ 35 ° C 1C constant current constant pressure full, set aside 1 h to 6C discharge to termination voltage 2.0V, and single electric pool temperature rise < 30 ℃ |
Max Pulse Discharge Current | 6C～10 s | 20 ℃～35 ℃ |
Dimension | (21.3±0.9)× (100.5±0.5)× (144.8±0.5)mm | (T×W×H)mm |
Weight | 605 g±18 g | / |
We are spot trader for Gotion 3.2V Lithium iron phosphate battery cells. To provide you with reliable and efficient power solutions that you can trust.
3.2V IFP20100140A-27Ah is used in toys, power tools, household appliances, consumer electronics, ships, golf carts, submarines, electric bicycles/scooters, electric vehicles, electric wheelchairs, power systems, solar energy storage systems, uninterruptible power supplies, electric forklifts, energy storage ESS home energy storage electric vehicles.

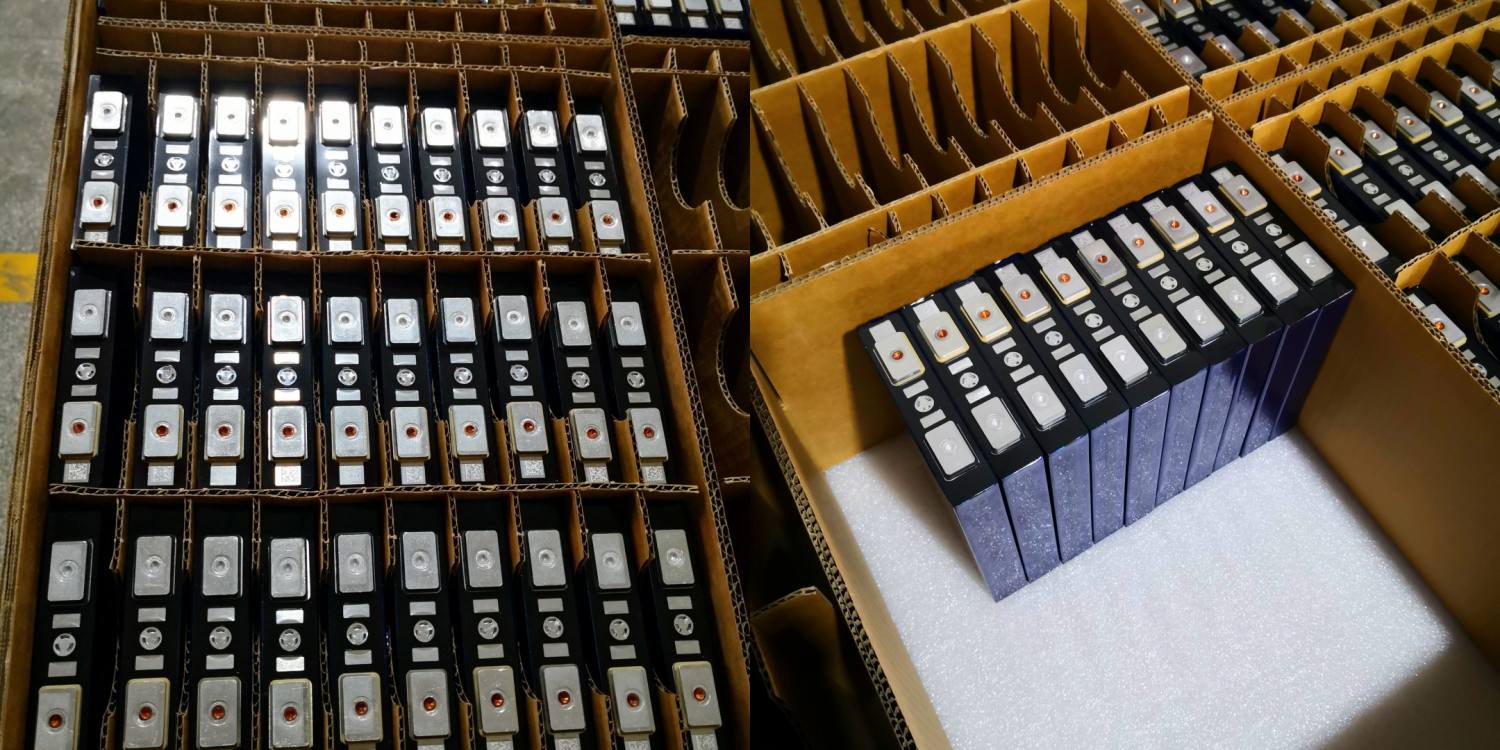

Above Latest Batch Delivery
