Industrial Thundersky Winston 768V 550ah 400kwh Lithium Battery Energy Storage Cabinet

Product Details:
Place of Origin: China
Brand Name: Thunder Sky Winston
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: /
Payment Terms: T/T
Nominal Capacity: 550Ah Nominal Voltage: 768V
Internal Impedence: / Operating Votage: 672~876V
Dimension: 2000 ×1300× 2550mm Battery Weight: Around 6 Tons

Product Description

Thundersky Winston 768V 550ah 400kwh  Lithium Battery.png

Product Advantages

High security
  • Water-based lithium yttrium battery cell, high temperature resistance and no explosion.

  • IP56 protection for outdoor applications

  • C5 anti-corrosion, 20 years reliability

  • Independent fire protection system

  • Stand-alone thermal management system


Long life Span
  • Low self-discharge rate, long cycle life cell, service life of more than 20 years.

  • Integrated thermal management system, effectively control the temperature difference of the battery cell and improve the service life of the battery.


High integration
  • l Modular design, compatible with 600-1000V systems

  • 100~500Kw flexible expandable power module

  • lIntegrated independent EMS on-premise and cloud-based energy management systems

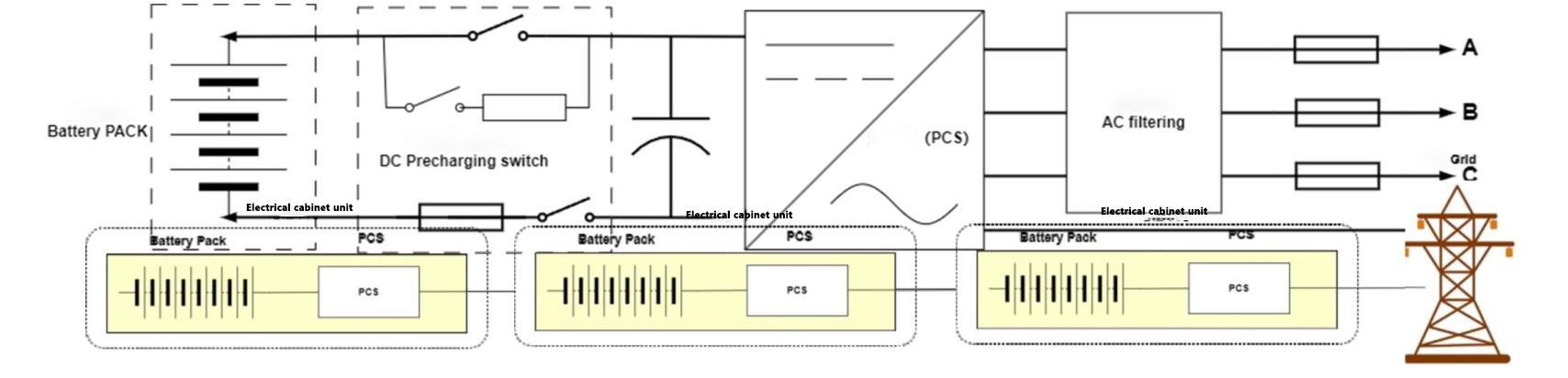

Product Circuit Diagra

Product Circuit Diagra Battery Energy Storage Cabinet.jpg


Parameter


Main Parameters
BES400KWH
Remark
Battery Type
LYP
Water-based lithium yttrium
batteries
Cabinet Type
1P40S × 6
240pcs of cells
Nominated Capacity
550Ah

Nominated Energy
400Kwh

DC Voltage
768V
672~876V
AC Voltage
400V(-15%~+15%)
50Hz/60Hz±
2.5Hz
Charge-discharge Power
125Kw
Scalable
Operating Temperature
-25~75℃

Ingress Protection
IP56

Cabinet Weight
Around 6 Tons

Cabinet Size
2000 ×1300× 2550
L × D × H (mm)
