REPT CB29148112EA-54Ah LiFePO4 Energy Storage Deep Cycle Battery

Product Details:
Place of Origin: /
Brand Name: REPT
Certification: /
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: /
Payment Terms: /
Nominal Capacity: 54Ah Nominal Voltage: 3.2V
Internal Impedence: ≤0.50 mΩ Operating Votage: Charge:-10<T≤55℃ Discharge:-20℃≤T<55℃
Dimension: 148.66*29.72*114.61mm Battery Weight: 1.082± 0.03kg

Product Description

REPT CB29148112EA-54Ah.jpg

Founded in October 2017, REPT BATTERO is the first company in the new energy industry to be backed by Tsingshan Group, a Fortune Global 500 enterprise. The company specializes in the research, development, production, and sales of lithium-ion batteries, catering to both power vehicles and energy storage applications, ranging from single cells to full systems. REPT BATTERO works closely with its clients to advance the global transition to green energy.

The company operates R&D centers in Shanghai, Wenzhou, and Jiaxing, with manufacturing facilities located in Wenzhou, Jiaxing, Liuzhou, Foshan, and Chongqing. By the end of 2022, its total production capacity had reached 35.2GWh, and it is projected to exceed 150GWh by 2025. In 2022, REPT BATTERO ranked among the top ten in power battery installations, and its energy storage battery shipments placed third in the industry.


Parameter


Item
Specification
Comment
Typical Capacity
54Ah
25 ± 2℃,1.0C
Typical Voltage
3.2V
25 ± 2℃
Operating Voltage
2.5-3.65 V
0℃<T≤55℃
2.0-3.65 V
-20℃≤T≤0℃
Standard Discharging
Current
54A
25±2℃
Maximum
Continuous
Discharging Current
216A
25±2℃
Maximum
Discharging Current
324 A
@10s,SOC≥50%,
25±2℃
Operating
Temperature
-10<T≤55℃
Charge
-20℃≤T<55℃
Discharge
Typical Dimension(W*T*H)
148.66*29.72*114.61mm
@3000 ± 200 N,
17%SOC
Cell Weight
1.082± 0.03kg

Energy
Density
158Wh/kg
1.0C
344Wh/L
ACR
(1 kHz)
≤0.50 mΩ
~ 17% SOC
Standard Charging
Method
(CC&CV)
In an ambient temperature of 25±5℃, battery is charged with constant current of
1/3I1(A) until 3.65V. Then it is charged at a
constant voltage of 3.65V until the current is
less than 0.05I1(A),and rest one hour.

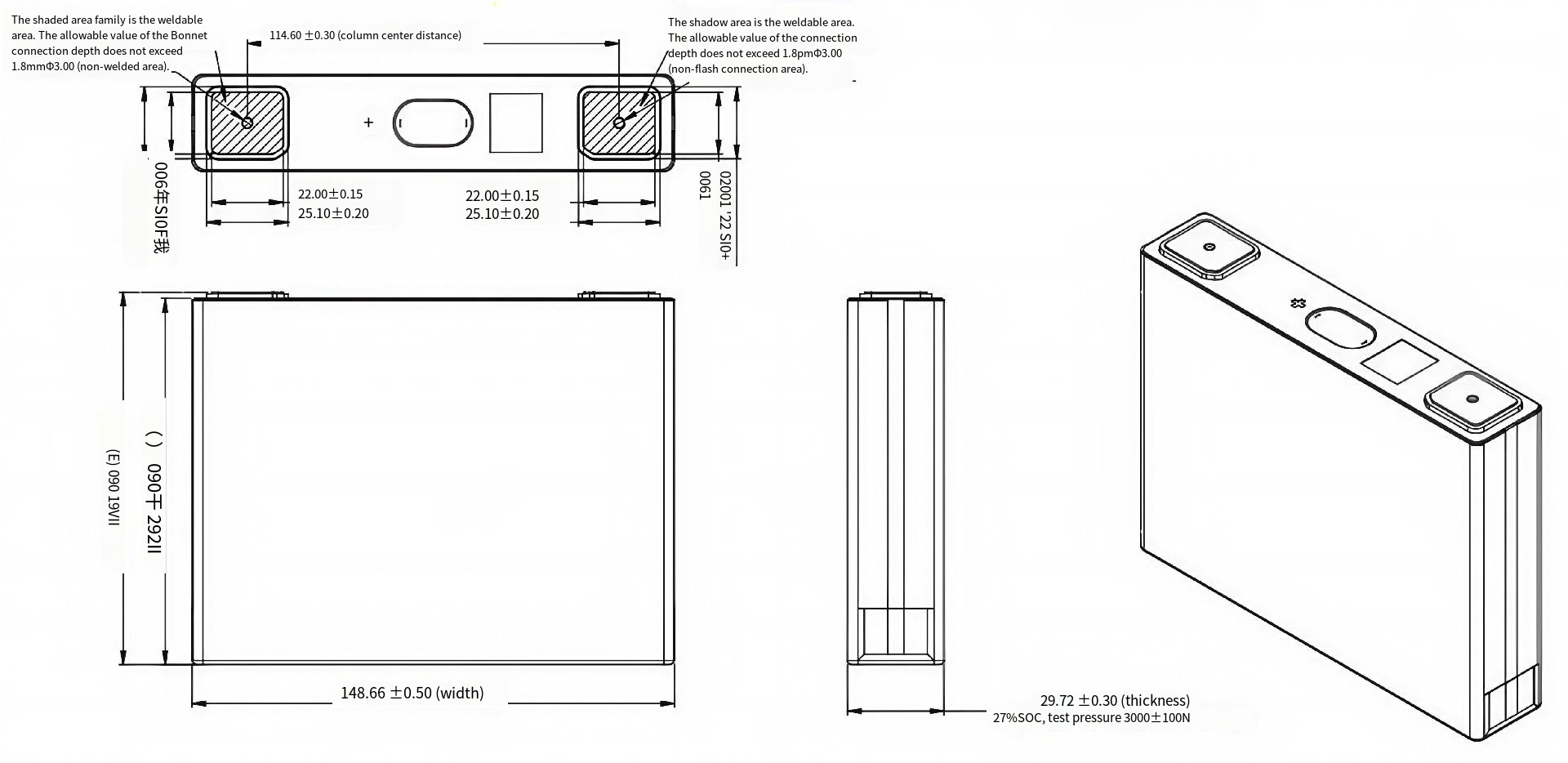

Drawing

REPT CB29148112EA-54Ah drawing.png


Applications

Solar Batteries, Energy storage , Customized Lithium battery Pack , Lifepo4 Battery Pack, Golf Cart


Storage

Store the cell in a clean, dry, and well ventilated location with ambient temperature between -30℃~60℃, better between -10℃ and 40℃. And relative humidity of 10%RH ~90%RH. Keep away from corrosive materials and magnetic field, fire and heat sources. Do not upside down, crush and press. If battery is not in use, total storage time is not recommended for more than 3 months.
