With the increasing popularity of electric vehicles (EVs), the advancement of charging technology has become a key aspect of the industry's development. The On-Board Charger (OBC), which acts as the crucial bridge between the electric vehicle and the external power grid, directly determines the charging speed and convenience of the electric vehicle. The power of the on-board charger, typically measured in kilowatts (kW), is an important indicator of charging capability. Currently, 3.3kW and 6.6kW are two common on-board charger configurations in the market.
Working Principle of On-Board Chargers
The role of the on-board charger is to convert external alternating current (AC) into direct current (DC) and then deliver this DC power to the electric vehicle’s battery. The main functions of the charger include adjusting the input AC voltage, correcting the power factor, regulating the DC voltage, and managing the charging process. The performance of the charger, particularly its power, directly impacts the charging time, efficiency, and the lifespan of the battery.

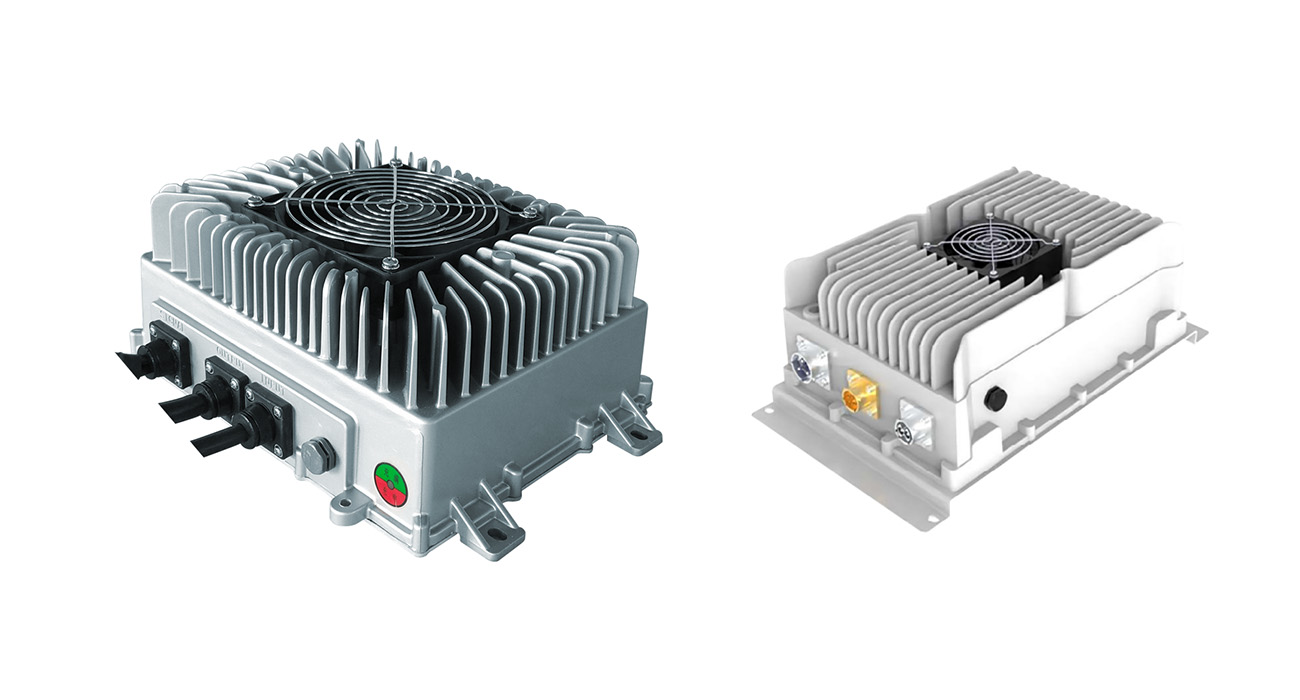

Performance Analysis of 3.3kW On-Board Chargers
3.3kW On-Board Charger are typically used for low-power demand electric vehicles, particularly small urban commuter cars or vehicles with lower range. While the charging capacity of this type of charger is relatively low, it still has significant advantages in certain scenarios.
Charging Time
The charging speed of a 3.3kW charger is slower. For example, it would take approximately 12 hours to fully charge a 40kWh battery. For users with daily short commutes, this charging time is acceptable, especially when the vehicle is parked for long periods at a fixed location, such as at home or in the office. In such situations, the slow charging rate can be maximized.
Applicable Scenarios
A 3.3kW charger is suitable for vehicles with smaller batteries or those not requiring fast charging. Additionally, due to its lower power output, the 3.3kW charger is also cost-effective and suitable for budget-friendly electric vehicles and home charging scenarios with low power demand.
Cost and Energy Efficiency
The cost of a 3.3kW on-board charger is lower, which makes it competitive in cost-sensitive markets. Moreover, the energy efficiency of a 3.3kW charger remains stable, especially in home charging or low-load environments where energy losses are minimal.
Performance Analysis of 6.6kW On-Board Chargers
In contrast, a
6.6kW On-Board Charger provides higher charging capacity and is suitable for electric vehicles with medium to high power demands. For most modern electric vehicles, especially those with larger batteries or longer ranges, a 6.6kW charger is more commonly seen.
Charging Time
The charging speed of a 6.6kW on-board charger is significantly faster. For the same 40kWh battery, the charging time is around 6 hours, which is twice as fast as the 3.3kW charger. This means that for long-distance travel or high-frequency usage scenarios, a 6.6kW charger can significantly reduce downtime and improve vehicle usage efficiency.
Applicable Scenarios
A 6.6kW charger is suitable for medium- to high-end electric vehicles, especially those with larger battery capacities or those frequently used for long trips. For these users, faster charging speeds can significantly reduce the time spent charging and improve the flexibility and convenience of driving.
Cost and Energy Efficiency
Due to the higher power output, a 6.6kW charger is more expensive. However, this investment is justified by the significant advantages in charging speed. In terms of energy efficiency, the 6.6kW charger may experience some energy losses, particularly in the early stages of charging due to high current surges. Additionally, the thermal management of the battery becomes more critical, which can impact charging efficiency.
Performance Comparison
Charging Speed Comparison
The 6.6kW on-board charger clearly outperforms the
3.3kW charger in terms of charging speed. For larger batteries, the 6.6kW charger can fully charge the battery in a shorter amount of time, which is especially beneficial for users who require high-frequency charging or long-distance driving. On the other hand, the 3.3kW charger is more suitable for daily commuting and users with lower charging demands, with slower charging speeds and longer charging periods.
Power Demand and Infrastructure
The 6.6kW charger requires a higher AC input power, which means it may face issues in areas with inadequate power infrastructure. In contrast, the 3.3kW charger has lower power requirements, making it compatible with more types of home and public charging facilities.
Vehicle Compatibility and Selection
The 3.3kW charger is typically found in smaller or budget electric vehicles, which have smaller battery capacities and lower charging demands. The 6.6kW charger is better suited for larger battery electric vehicles, especially medium- to high-end models with longer ranges.
Technical Challenges and Development Trends
Charger Thermal Management
One major challenge for high-power on-board chargers is thermal management. In the case of 6.6kW chargers, the higher power output generates more heat during the charging process. Therefore, efficient heat dissipation systems are required to ensure safety and stability during charging.
Charging Efficiency and Losses
6.6kW chargers may experience higher energy losses due to their higher power requirements. Future technological developments will focus on improving charging efficiency and reducing energy loss in both the battery and charging equipment, enhancing the economic and environmental aspects of the charging process.
Smart Charging and Grid Scheduling
With the development of smart grid technology, the charging strategy of on-board chargers will become more intelligent, allowing dynamic adjustments based on the load conditions of the power grid. The 6.6kW charger will be able to optimize charging times and power output through smart scheduling, reducing the strain on the electrical system.
