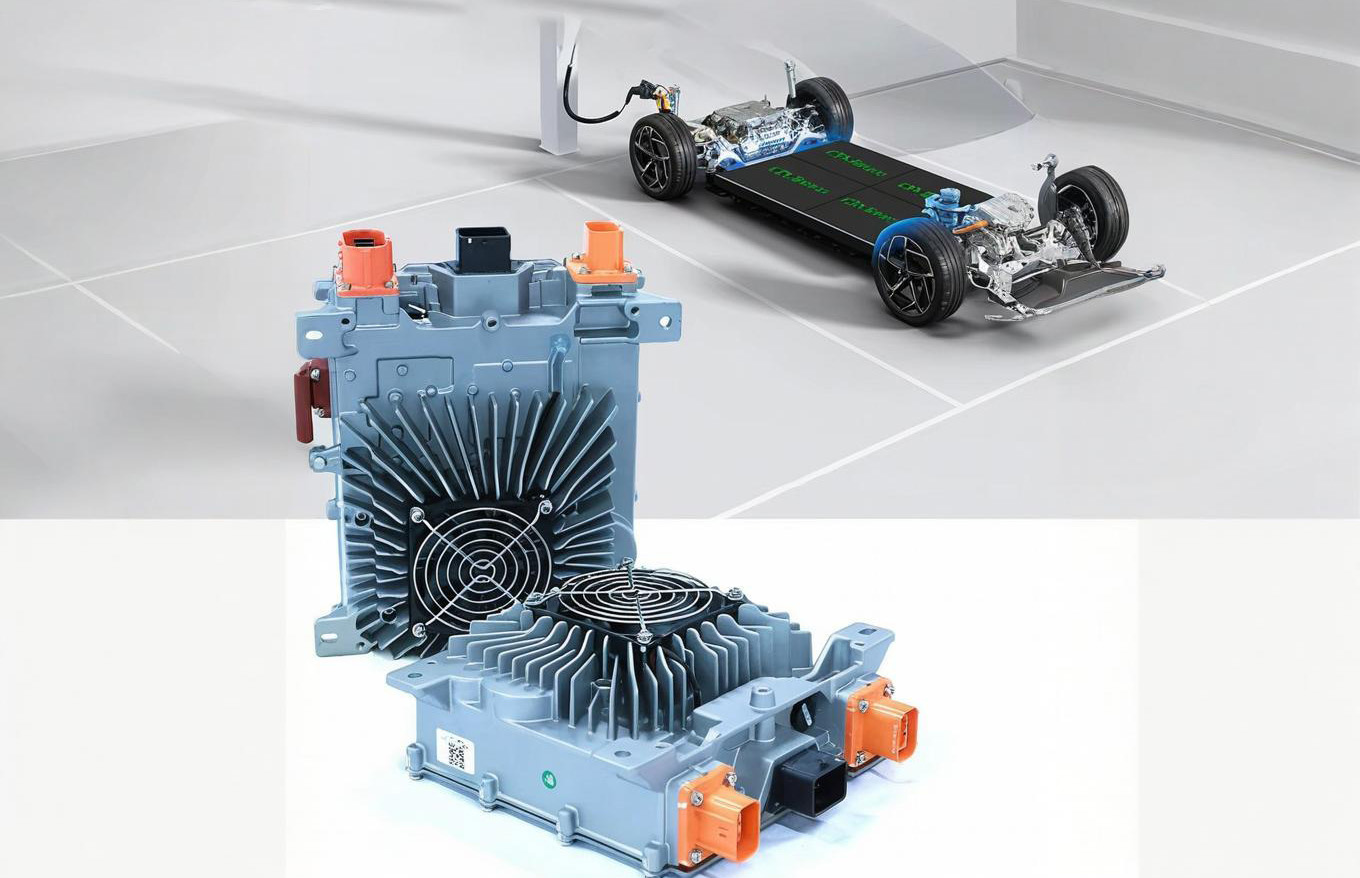

6.6 kW OBC (On-Board Charger) provides 6.6 kW of power per hour. The charging speed also depends on the capacity of the vehicle's battery. For example, if an electric vehicle's battery has a capacity of 60 kWh, a 6.6 kW charger would theoretically take about 9 hours to fully charge the battery from 0% (60 kWh ÷ 6.6 kW = 9.09 hours).
However, this is a simplified calculation, and the actual charging time may vary due to the following factors:
State of Charge (SOC): The closer the battery is to being empty, the faster the charging speed. However, as it nears full charge, the charging rate usually slows down (due to the charging curve).
Efficiency: The charging process is not 100% efficient, and some energy is lost as heat during the conversion process. Typically, charging efficiency ranges from 85% to 95%.
External Environment: Temperature and other environmental factors may also affect the charging speed.
In practice, for an electric vehicle with a typical 50-70 kWh battery, a 6.6 kW charger usually takes 6 to 10 hours to charge from near empty to full.
How much range can a 6.6 kW electric vehicle charger provide per hour?
It depends on the state of the battery. If the battery is in a low charge state, it will charge faster, and then the speed will slow down as it approaches full charge.
It's similar to inflating a bicycle tire. It's easy at first, but you need to work harder to get the last bit of air in.
A good rule of thumb is that most electric vehicles can travel about 3-4 miles per kilowatt-hour. Therefore, a 6.6 kW charger can potentially charge at a rate of 20-25 miles per hour under optimal conditions.
This makes it suitable for charging the car while it’s parked in a driveway or parking lot, but it’s not fast enough for long trips. For highway chargers, you need more than 50 kW of power to provide useful range during a 20-40 minute driving break.
Does the charging efficiency of a 6.6 kW OBC change with battery charge level?
Yes, the charging efficiency of a

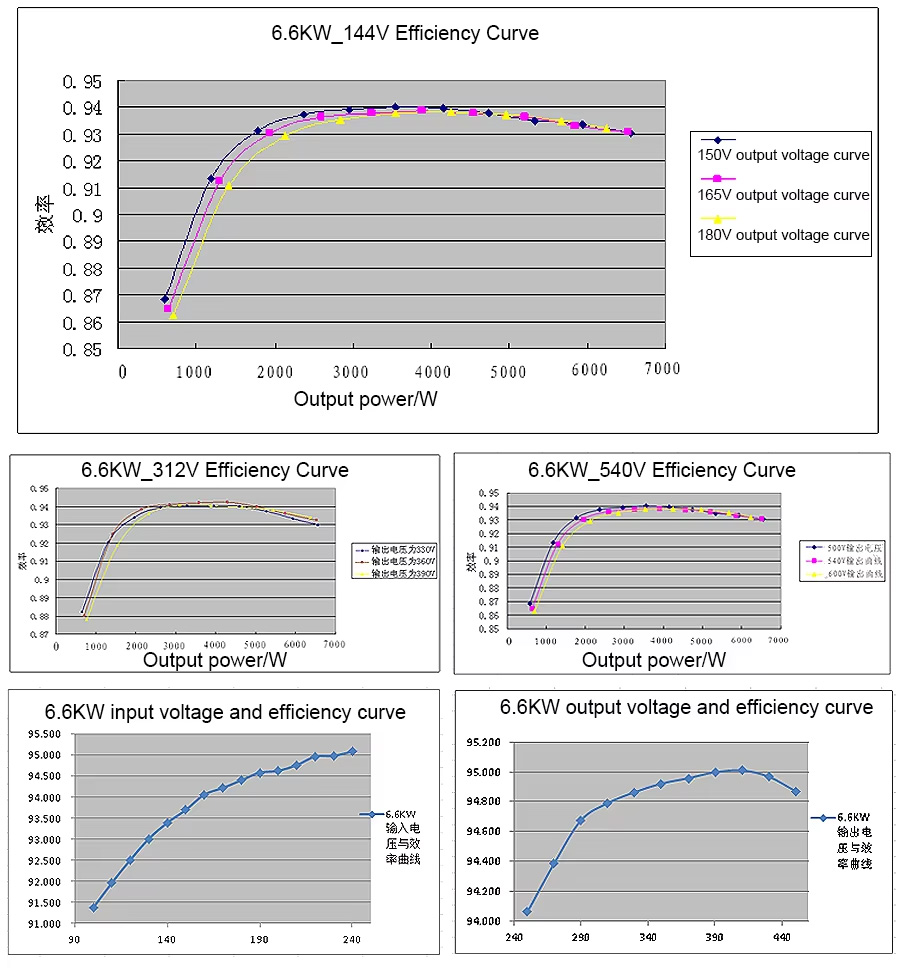

6.6 kW On-Board Charger can vary with the battery’s charge level. Typically, the charging speed is faster when the battery is between 0% and 20%-80%, as the power conversion between the charger and the battery is more efficient. However, once the battery reaches 80%, charging efficiency typically decreases, mainly due to adjustments made by the Battery Management System (BMS) to reduce the risk of overcharging and to extend battery life. Therefore, although the 6.6 kW charger theoretically provides a constant power output, the actual charging speed will be influenced by the battery's charge level and the BMS's adjustments.
What is the impact of using a 6.6 kW On Board Charger on battery life?
The impact of a 6.6 kW charger on battery life is relatively small, as long as the charging process follows best practices, such as avoiding prolonged overcharging or deep discharging. Compared to higher-power chargers, the 6.6 kW charger’s charging speed is more moderate, reducing the heat generated during charging, which helps to reduce the battery’s thermal load and extend its lifespan.
However, thermal management during charging remains crucial. Even with a lower-powered charger, if the battery is charged under high load in extreme environments for extended periods, it can still have a negative impact on the battery. Therefore, appropriate charging strategies and regular battery maintenance are still essential for battery longevity.
Will there be a significant difference in charging time between a 6.6 kW OBC and higher-power chargers (such as 11 kW or 22 kW)?
Compared to a
6.6 kW OBC, 11 kW or 22 kW chargers provide higher power and theoretically charge the battery faster. For example, with an 11 kW charger, the theoretical charging time would be reduced by about 50%, and with a 22 kW charger, the charging time might be reduced to an even shorter period. However, the difference in charging time depends not only on the power of the charger but also on the power acceptance limits of the battery management system (BMS), thermal management during charging, and the capacity and technology of the battery.
In practice, many electric vehicles' On-Board Chargers can only support 6.6 kW or 10-11 kW charging, so even if higher-power charging infrastructure is available, the maximum power output of the On-Board Charger is the limiting factor for charging speed. Therefore, although high-power chargers can offer faster charging, charging time can only be significantly reduced if the electric vehicle is capable of supporting these higher charging powers.
Why does the charging speed of a 6.6 kW charger get affected in high or low-temperature environments?
The effect of temperature on charging speed mainly comes from the battery's chemical reactions and the thermal management during charging. In high-temperature environments, the battery is prone to overheating, and the BMS typically reduces the charging rate to prevent battery damage or overheating. Therefore, in hot conditions, the charging speed may slow down, or charging may stop in extreme cases. On the other hand, in low-temperature environments, the rate of internal chemical reactions in the battery decreases, leading to a drop in charging efficiency. Thus, charging speed is also affected in cold environments.
To address this issue, many electric vehicles are equipped with temperature control systems (such as liquid cooling or heating systems), but even so, extreme temperatures can still impact charging times.
