As the electric vehicle (EV) market rapidly evolves, 800V high-voltage platform technology is emerging as a key industry focus. Compared to traditional 400V systems, this technology offers higher efficiency, cost-effectiveness, and sustainability.
As the electric vehicle (EV) market rapidly evolves, 800V high-voltage platform technology is emerging as a key industry focus. Compared to traditional 400V systems, this technology offers higher efficiency, cost-effectiveness, and sustainability.
The Rise of 800V High-Voltage Technology
In recent years, numerous automakers and suppliers have embraced 800V high-voltage platforms:
Automaker Deployment
Porsche: Its Taycan is the first mass-produced EV featuring an 800V architecture, demonstrating its performance advantages.
Hyundai Motor Group: Models like the IONIQ 5 have adopted 800V technology for high-speed charging and efficient driving.
Chinese Automakers: Companies like BYD, NIO, and Zeekr are accelerating the development of 800V platforms to promote this technology in the Chinese market.
Supply Chain Support
Power semiconductor manufacturers such as Infineon and ON Semiconductor are introducing silicon carbide (SiC) power devices tailored for 800V systems.
Charging infrastructure providers like Tesla and CATL are also developing supercharging solutions compatible with 800V technology to support higher power demands.
From High-End to Mass Adoption
Expansion from High-End to Mid-Range Vehicles
Currently, 800V technology is mainly found in luxury EV models. However, as the technology matures and costs decrease, mid-range vehicles are expected to adopt high-voltage architectures.
Rapid Charging Network Upgrades
Globally, the construction of high-power charging stations is accelerating. Ultra-fast charging networks in regions like China, Europe, and North America will drive the adoption of 800V technology.
Integration with Intelligent Systems
Beyond hardware improvements, the 800V platform enables innovations in smart battery management, connected vehicle technology, and onboard energy management.

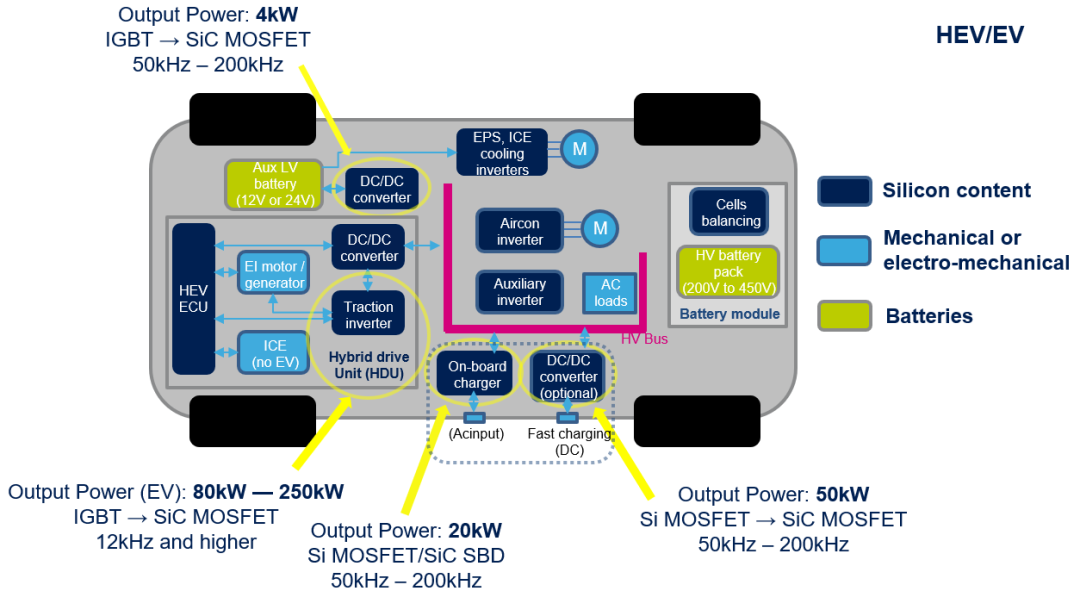

Core Components of 800V High-Voltage Architecture
The 800V platform optimizes performance and efficiency by increasing voltage and reducing current. Key technical elements include:
Battery and Motor Design
High-voltage batteries require optimized module designs and enhanced thermal management. High-voltage motors depend on more efficient controllers and insulation systems.
Application of Power Semiconductors
Silicon carbide (SiC) technology, a cornerstone of the 800V system, offers faster switching speeds and lower losses, significantly boosting system efficiency.
Optimization of Power Electronics
High-voltage systems necessitate redesigned inverters, DC-DC converters, and onboard chargers (OBCs)to accommodate the higher voltage levels.
Why Choose 800V High-Voltage Technology?
Faster Charging Speeds
The 800V architecture supports higher power fast charging. For instance, at a 350kW charging station, vehicles can charge up to 80% in just 10-15 minutes.
Higher System Efficiency
Increasing voltage significantly reduces current, minimizing energy loss and heat generation, thereby improving drive efficiency and range.
Weight and Cost Reduction
High-voltage systems use thinner wires and cables, reducing vehicle weight and lowering copper material costs.
Enhanced Vehicle Performance
The 800V platform enables higher power output, delivering stronger acceleration to meet the demand for high-performance EVs.
400V and 800V architecture Differences
| 400-volt | 800-volt | |
Charging time | Charge times are limited by the maximum current output capabilities of charging stations. This limitation is due to the heat generated by higher currents ensuring safe and efficient charging. As a result, vehicles with 400-volt EV architecture are unable to fully utilize the capabilities of high-voltage charging stations, leading to charging times that are slower than anticipated. | Supports faster charging from high voltage charging stations, these vehicles can accept greater power due to the lower current they require. This capability allows them to charge more rapidly when using chargers designed for 800V systems. |
Efficiency / Range | 400-volt architectures typically involve heavier components and experience reduced efficiency due to energy losses from heat generated by higher currents when compared to 800-volt systems. | A decrease in energy loss through heat, coupled with the ability to capture more power via regenerative brakin |
Weight | Typically require heavier cables, power equipment, and motors due to the higher currents they operate with, leading to an overall heavier design. | The high voltage capabilities of 800-volt architectures allow for the use of lighter cables and components, as they support lower current requirements. |
Cost | Lower cost to build, benefiting from the use of high-volume components, a well-established and robust manufacturing process, and a strong, existing supply chain. | The production of 800-volt EV architectures tends to be more expensive due to being an emerging technology with a smaller market share, leading to higher costs for components |
Charging infrastructure | The majority of public DC fast charging stations are designed for 400-volt electric vehicles. High-powered charging stations can still be utilized but charging speeds will be lower due to the low voltage input. | To fully benefit from the increased charging speeds offered by 800-volt EV architectures, there is a need for more charging stations equipped with higher voltage ranges. Although the majority of existing 400-volt DC fast chargers can be used by 800-volt EVs, this is contingent upon the vehicle being equipped with additional hardware to manage the lower voltage. |
Challenges and Future Prospects
Despite its clear advantages, 800V high-voltage technology faces challenges in widespread adoption:
Technical Barriers: High-voltage insulation design, component lifespan, and safety concerns remain significant hurdles.
Supply Chain Coordination: Upgrading the entire value chain from batteries to charging infrastructure will take time.
Cost Issues: Initial costs of high-voltage systems are high but expected to decrease with economies of scale.
800V high-voltage technology is driving the EV industry to new heights. It not only accelerates charging efficiency but also revolutionizes vehicle performance and energy utilization. With collaborative efforts from automakers and suppliers, 800V technology is expected to become widely
