EV charger voltage classification
Electric vehicle chargers can usually be divided into the following types according to the charging mode:

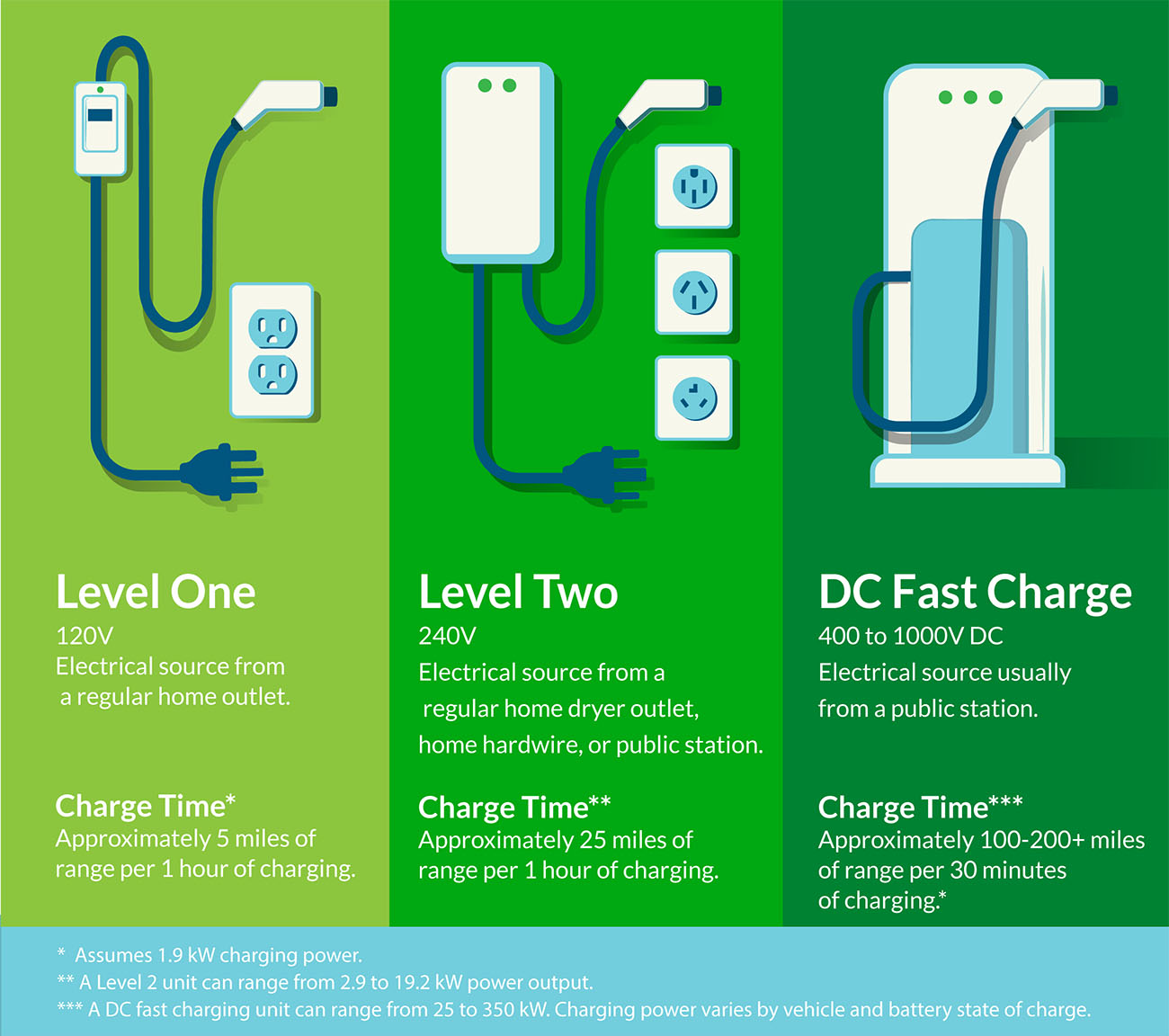

AC Slow charge (AC Level 1 and Level 2) :
The voltage range is usually 110V to 240V.
Ac is used to power the vehicle's on-board charger directly, and the on-board charger converts AC to direct current for storage in the battery.
Suitable for home charging and non-emergency scenarios, the charging power is generally 2kW to 22kW.
DC Fast Charging:
The voltage range is usually 400V to 1000V or more.
The fast charging station directly outputs high voltage direct current without the need to convert through an on-board charger.
Support higher power output (50kW to 350kW), significantly reducing charging time, suitable for long distance travel or public charging needs.
Ultra-fast Charging:
The voltage can be as high as 800V or even 1200V.
In recent years, high-performance electric vehicles such as the Porsche Taycan and Hyundai IONIQ 5 have supported 800V architecture and can charge more than 350kW.
By reducing the charging current, reduce the charging cable and battery heat loss, thereby improving the charging efficiency.
Effect of voltage on charging performance
Charging Speed:
High-voltage charging can significantly improve charging speed because the voltage and current are inversely proportional under the same power condition. Higher voltage can reduce current, thereby reducing cable heat loss and improving energy transmission efficiency.
Battery Life:
Although high voltage can shorten charging time, excessively high charging voltage may damage the battery's chemical structure and accelerate battery degradation. Therefore, the battery management system (BMS) usually strictly controls the charging voltage during the charging process, especially reducing the charging voltage when the battery is near full to extend battery life.
Equipment Compatibility:
Different vehicle models and markets may have different charging voltage standards. For example, the GB/T standard in China, the CCS (Combined Charging System) in Europe, and the CHAdeMO standard in Japan have different voltage ranges. Compatible charging equipment is crucial for the global promotion of electric vehicles.
Safety:
High-voltage charging involves higher energy transmission, and safety is a critical consideration. Charging equipment needs to have protective measures such as insulation design, over-voltage protection, and real-time monitoring to ensure a safe and reliable charging process.
With the progress of battery technology and the growing demand for charging, it is anticipated that the voltage level of electric vehicle chargers will keep rising. For instance, the next generation of batteries might support higher-voltage charging to meet the requirements of faster charging. Nevertheless, this demands a synchronous upgrade of the charging infrastructure while guaranteeing the safety and reliability of the equipment. Additionally, the development of intelligent charging technology, which dynamically adjusts the charging voltage to optimize efficiency and battery health, will also be a significant research direction in the future.
The voltage of electric vehicle chargers is one of the core parameters influencing charging performance, and its design needs to strike a balance among charging speed, battery lifespan, safety, and device compatibility. By adopting more efficient and intelligent charging voltage management strategies, the popularity and application prospects of electric vehicles will be broader. In the future, as charging technology keeps innovating, high-voltage charging solutions will offer better user experiences and stronger market competitiveness to electric vehicles.
FAQ
Why can high voltage increase the charging speed of electric vehicles?
High voltage can reduce the charging current under the same power condition, thus reducing heat loss in cables and battery connectors. Lower current reduces energy waste and improves charging efficiency. Additionally, high voltage can support larger power transmission, which is particularly important for DC fast charging and ultra-fast charging technologies. Therefore, high-voltage charging systems have become an important development direction for electric vehicle charging technology.
What effect does high voltage have on battery life?
High-voltage charging may have certain effects on the battery's chemical structure, such as accelerating the oxidation of the positive electrode material and the decomposition of the electrolyte, which can ultimately lead to a decline in battery capacity. However, by optimizing the battery management system (BMS), the dynamic changes in charging current and voltage can be limited during high-voltage charging, especially by gradually reducing the voltage in the latter stages of charging (approaching full charge) to reduce the pressure on the battery. This optimization strategy can achieve a balance between efficient charging and battery life.
Is the current charger voltage on the market uniform?
At present, the charger voltage on the market is not completely uniform, and there are differences in different regions and standards. For example, the GB/T standard used in China mainly supports DC fast charge from 400V to 750V, while the European CCS standard supports a wider voltage range (400V to 1000V). Some new electric vehicles support 800V and higher architectures, such as the Hyundai IONIQ 5 and the Porsche Taycan. In addition, in order to meet the compatibility needs of different models, many charging stations are gradually upgraded to provide a variety of voltage and interface standards to meet the needs of the global market.
